6.25 m³/h Oily Wastewater Treatment Project — Port Refinery, Malaysia
An industrial effluent treatment system (IETS) for oily, CPI grease wastewater, delivered as a complete physicochemical + biological package — system integration, on-site commissioning and operation optimisation.

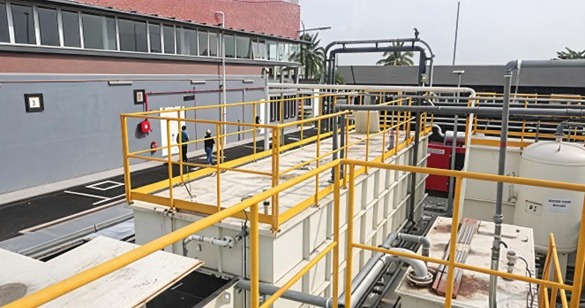

The treatment area at the Malaysia port refinery site.
Project Overview
| Item | Detail |
Location |
Port refinery area, Malaysia — petroleum refining |
Design capacity |
6.25 m³/h, continuous duty |
Wastewater type |
Oily / CPI grease wastewater; influent pH 6–7 (slightly acidic, neutralisation required) |
Treatment process |
pH neutralisation → DAF dissolved-air flotation → MBBR biological tanks ×2 → inclined-plate settler → clear water tank, with multimedia filtration and backwash |
Scope of supply |
System integration, on-site commissioning, operation optimisation and ongoing operational troubleshooting |
Client interface |
Process HMI diagram with PLC / Modbus address mapping, so the IETS status can be displayed in the client's main plant control system |
Equipment Overview
Equipment |
Specification / function |
Collection tank & neutralisation |
Receiving, flow equalisation and in-line neutralisation · UPVC pipe mixer, pH on-line analyser, 2 × submersible mixers, NaOH dosing |
DAF dissolved-air flotation |
Oil, grease and solids removal · dissolved-air pump, air vessel, PAC / PAM dosing |
MBBR biological tanks ×2 |
Two biofilm reactors in parallel · balanced flow split, combined discharge in DN65 |
Settler & clear water tank |
Sludge / water separation and treated water storage · DN65 inlet flange, DN65 electromagnetic flowmeter |
Chemical dosing system |
PAC tank, hydrated lime tank, metering pumps and control cabinet |
Aeration & air supply |
Roots blowers, air compressor and air piping for the biological tanks |
Sludge dewatering |
2 × screw press machines |
Filtration & backwash |
Multimedia filter, backwash tank and numbered valve manifold |

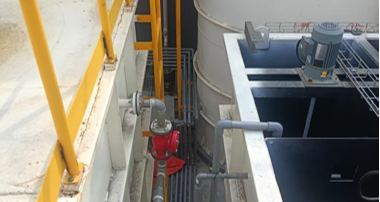

Chemical dosing — PAC and hydrated lime tanks with metering pumps.

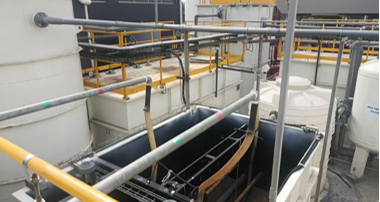

Treatment tanks — Biological and settling tanks in a common block.

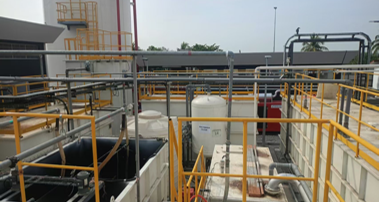

Blowers — Roots blowers delivering aeration air to the tanks.

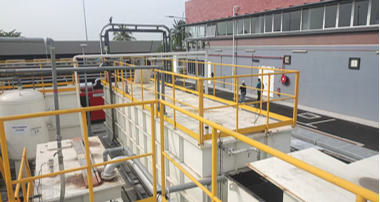

Air supply — Air compressor and aeration equipment.

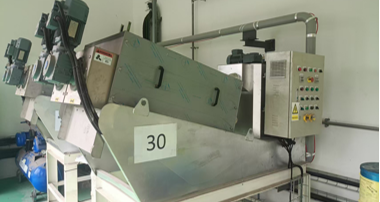

Sludge dewatering — Two screw press dewatering machines.

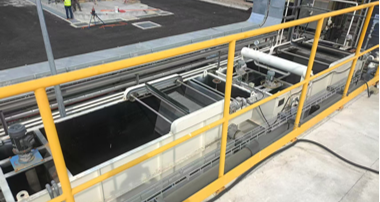

Site works — Installation and commissioning in the treatment area.
