Integrated MBR Sewage Treatment Equipment for Municipal Wastewater Environmentally Friendly Packaged Plant
Quick Detail:
Wasterwater treatment system, packaged sewage treatment equipment，Integrated Sewage Treatment Equipment，sewage treatment system
Wasterwater treatment
- Overview
- Recommended Products
| Place of Origin: | Shandong, China |
| Brand Name: | Jinwantong |
| Model Number: | JWT-MBR |
| Certification: | CE/ISO |
| Minimum Order Quantity: | 1Set |
| Delivery Time: | 30days |
| Payment Terms: | all |
Description:

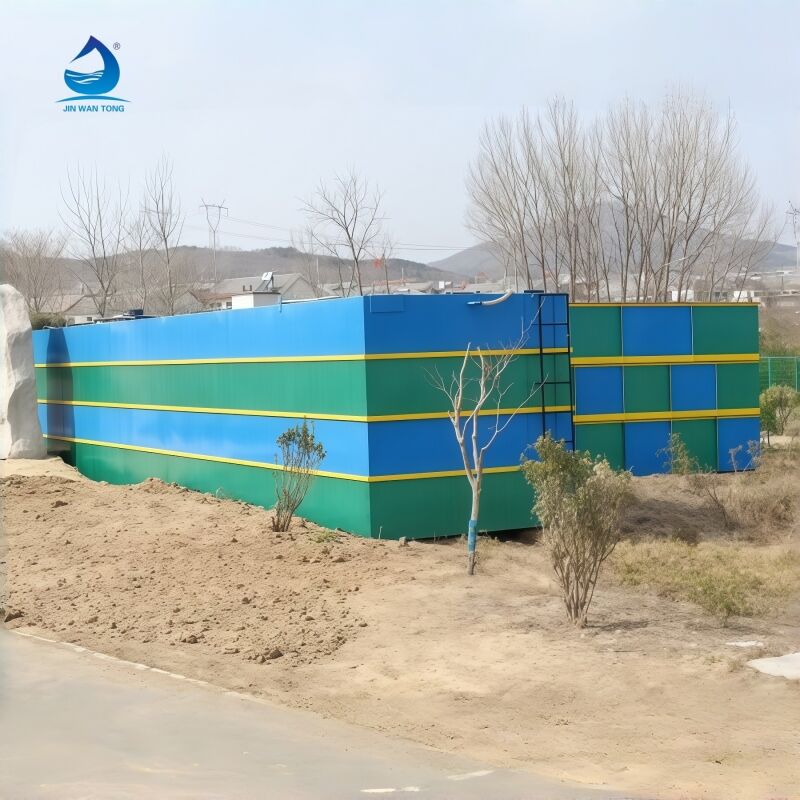

Industrial waste water treatment plants for industry wastewater treatment is an underground plant which adopts the advanced Biological technology and the company’s scientific research and engineering practice result, it can effectively remove BOD5,COD and NH3-N. The device is characterized by the stable performance, effective treatment, economical investment, automatic operation, convenience of maintenance and small occupying space. There is no need for construction, neither heating and heat preservation.The surface can be used as green land or square land.It also can be placed on ground based on client's requirement.
Working principle
What is inclined tube sedimentation tank
The inclined tube precipitator is formed by the inclined tube with an inclina-tion Angle of 60 degrees above the mud residue suspension layer. The suspended matter in the raw water, solid matter or floc alum flowers formed after adding coagulant are accumulated in the surface area of the bottom side of the inclined tube to form a thin mud layer, which slides back to the mud residue suspension layer by gravity, and then sinks into the mud col-lecting bucket.
MBR system use hollow fiber membrane to make solid-liquid separation.The NL series immersed hollow fiber membrane is special developed membrane module. lt has higher filtering efficiency, it can effective remove bacteria、 suspended particles and impurity, thus get the superior filtering water.
Main Feature
1. lt can widely apply to domestic and most industrial sewage treatment.
2. lt requires a low capital cost and is much cheaper than other complicated process
3. Easy to operate, high effciency
4. Save investment, impact resistance, small sludge, reduce structures, convenient
Main components
1.Grease trap
Remove parts of oil and grease
2.Screen channel
Main used to intercept big block floater in sewage, to guarantee follow-up processing structures normal operation and effective reduce load, supply guarantee for system long term normal operation,
3. Equalize tank
Due to each time water quality.volume is different, the peak flow rate of average flow rate 2~8 times, thus sewage treatment system steady operation, equalize water volume and homogenize water quality, build-in sewage pump and backflow measure, equip with aeration system to proceed pre-aeration, to guarantee certain rated flow rate lifting to integrated sewage treatment equipments and follow-up treatment steady, sewage lifting pump 2pcs .
4.Anoxic tank
In order to control the dissolved oxygen in oxic biochemical tank about 0.5mg/l, adopting interval aeration. the padding in anoxic tank adopting new type elastic padding, height is 2.0m. such padding with the advantage of no easy blocking.light weight.big specific surface area, treatment effect steady etc, easy to maintenance and change , retention time 3.5hours.
5.Oxic tank(two grade)
In oxic tank equip with columnar biology carrier padding, this padding specific surface area is big, is 16-20 times comparing with common biological padding, keep higher biomass, to reach the purpose of removing organic pollutant, aeration device adopting air blower and micropore aerator, the oxygen utilization rate is above 30, effective save operation cost. Retention time 7 hours,air water ratio about 12:1.
6.Secondary Settling tank
The sewage still contain large number of suspended solid after treated by oxic biochemical, in order to make the effluent water SS meet up discharge standard, adopting vertical settling tank to make solid liquid separation, the sludge will pump to sludge tank, at the same time, according to actual condition to make part of sludge backflow to anoxic tank to proceed sludge backflow, increase the sludge concentration in oxic tank, improve removal efficiency.
7.Cleaning water tank
To storage cleaning water.
8.Sludge tank
The supernatant backflow to oxic tank to further treatment, few sludge after digestion. clearing manner can sucking and transport out from sludge tank bottom using dung-cart.

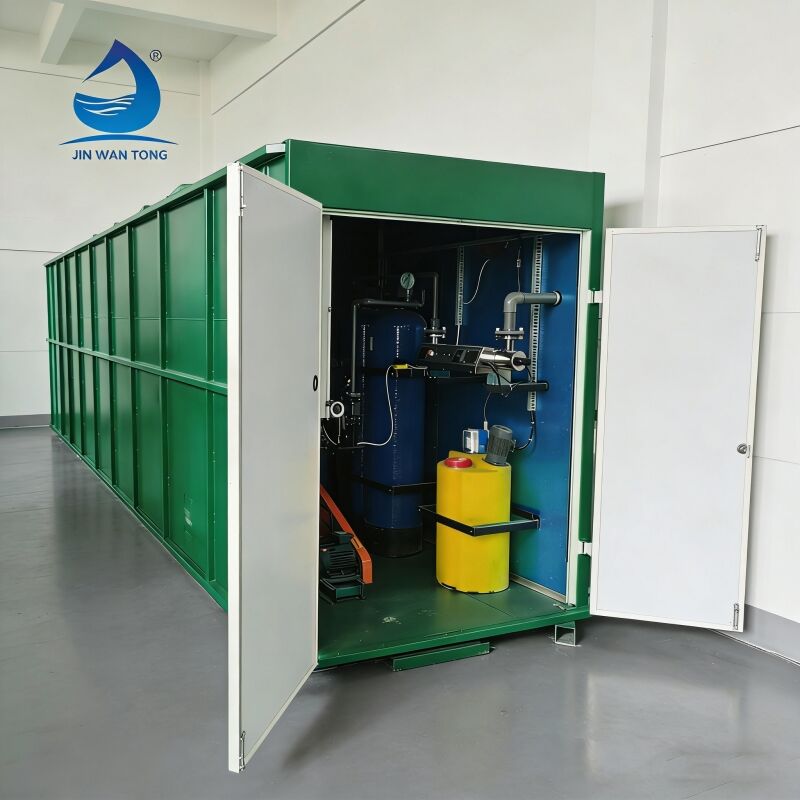

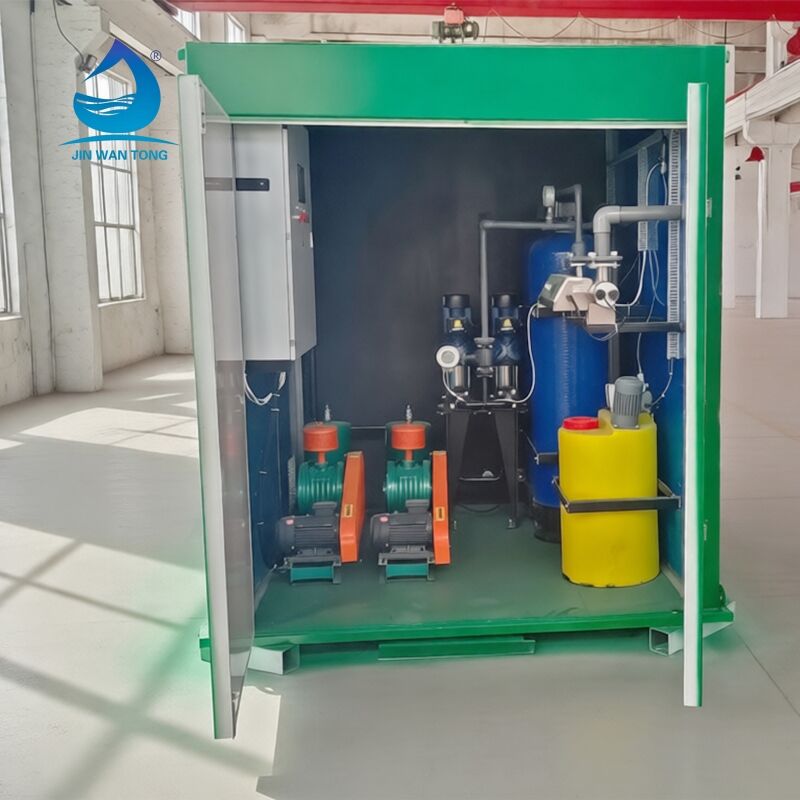

9.Control room
Control room set in the air blower,uv sterilizer,filters,electric control carbinet
Applications:
Industrial Applications:
Car washing water,Poultry processing, Meat processing ,Laundries and textiles ,Egg processing ,Byproduct rendering, Pulp and paper, Plastics recycling, Dairy and milk products, Metal plating and finishing, Bakeries ,Confectionaries, Food processing,Fish processing,Dyeing factory,Snack food processing, Beverage, Petroleum and petrochemical refining ,Natural gas and petroleum,fracking ,Biochemical ,Personal care products and etc.
Municipal Applications :
Domestic sewage,hotel sewage and ect.

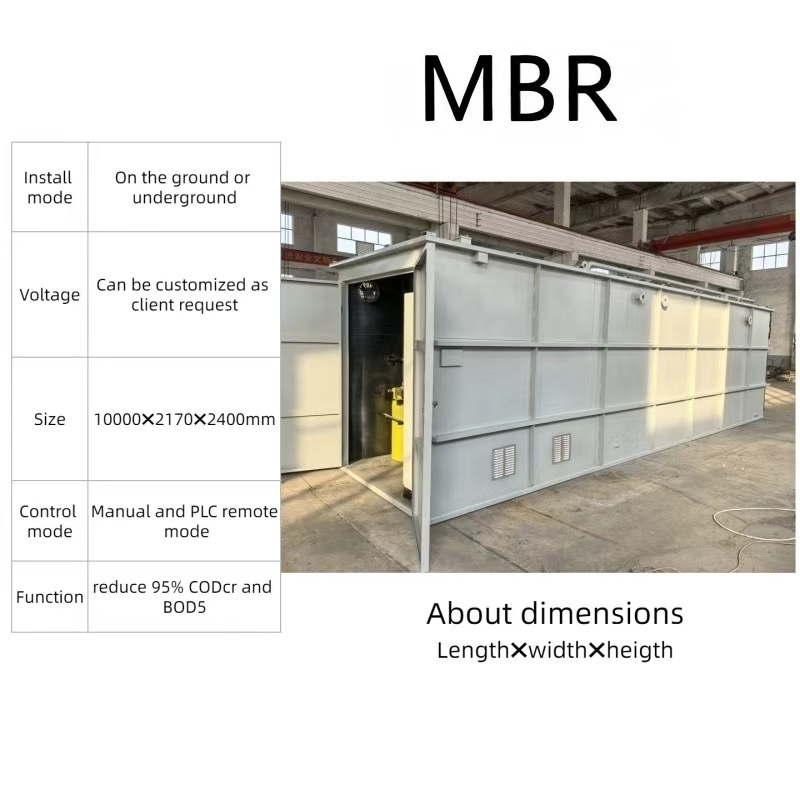

Specifications:
| Model number | Processing capacity（m3/d) | Long（mm) | Wide (mm) | High(mm) | Blower air volume（m3/min) |
| MBR-10 | 10 | 3000 | 1670 | 2400 | 0.047 |
| MBR-50 | 50 | 11800 | 2170 | 2400 | 0.047 |
| MBR-100 | 100 | 10000 | 2170 | 2400 | 2.95 |
| MBR-150 | 150 | 10000 | 2170 | 2400 | 4.2 |
| MBR-200 | 200 | 10000 | 2170 | 2400 | 5.05 |
| MBR-250 | 250 | 11800 | 2170 | 2400 | 6.3 |
Competitive Advantage:
High Percentage
High percentage of Biomass in contact with wastewater
Efficiency
The biological process is very fast
Flexibility
Elevated flexibility in fact there are no particular limitations due to the basin shape
Little effect
The process is practically not influenced by the suspended solids presence.
Reliable quality and long life
Well-known brand components, reliable quality and long life.
FAQ
1. Q: Are you a manufacturer or a trader?
A: We are a manufacturer integrating design, manufacturing, construction, installation, and after-sales service.
2. Q：What is the service life of the integrated sewage treatment equipment? Does it need to be replaced regularly?
A: The sewage treatment equipment anoxic zone filler is a combined filler, and its material is plastic with corrosion resistance, uniform tensile force, so it is not easy to break during operation, the service life is more than 8 years, beyond the service life needs to replace the new filler.
Aerobic zone filler is MBBR filler. It features high pollutant removal efficiency, small floor space, and convenient maintenance. Moreover, it has a long service life and doesn't need to be replaced for more than 10 years. The MBBR filler costs are higher than other types of fillers, but operating and maintenance costs are low.
3. Q: Can you meet my special requirements for the product?
A: Yes, we have a professional design team. We can provide foundation drawings upon your request.
4. Q: What matters should be paid attention to in the transportation and storage process of integrated sewage treatment equipments?
A: The transportation and storage of integrated sewage treatment equipment should prevent severe impact, falling. The attached electronic equipment should be rainproof and waterproof.
5. Q: How to discharge mud from the sewage treatment equipment?
A: The sewage treatment equipment adopts the contact oxidation process, which generates a relatively small amount of residual sludge. Therefore, it is only necessary to use a sludge suction truck to regularly suck and discharge the sludge according to the sludge level in the sedimentation tank.
6. Q: What’s your terms of payments?
A: We accept T/T, L/C, Paypal, MoneyGram. T/T is better.
7. Q: How to install the equipment?
A: We will provide you with detailed instructions and installation manuals.
8. Q: How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.
