Micro Nano Bubble Generator Aerator DAF Dissolved Air Flotation Fitting Releaser for Wastewater Treatment
Quick Detail:
Air flotation aerator
DAF Dissolved Air Flotation Fitting component
- Overview
- Recommended Products
| Place of Origin: | Shandong, China |
| Brand Name: | Jinwantong |
| Model Number: | JWT-AF |
| Certification: | CE/ISO |
| Minimum Order Quantity: | 1SET |
| Delivery Time: | 20DAYS |
| Payment Terms: | ALL |
Description:

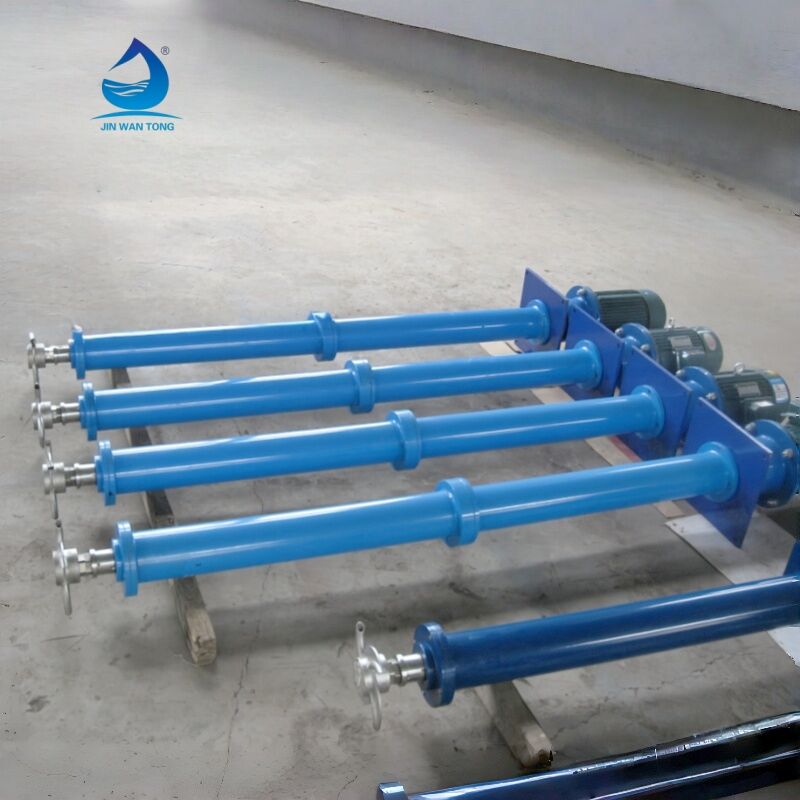

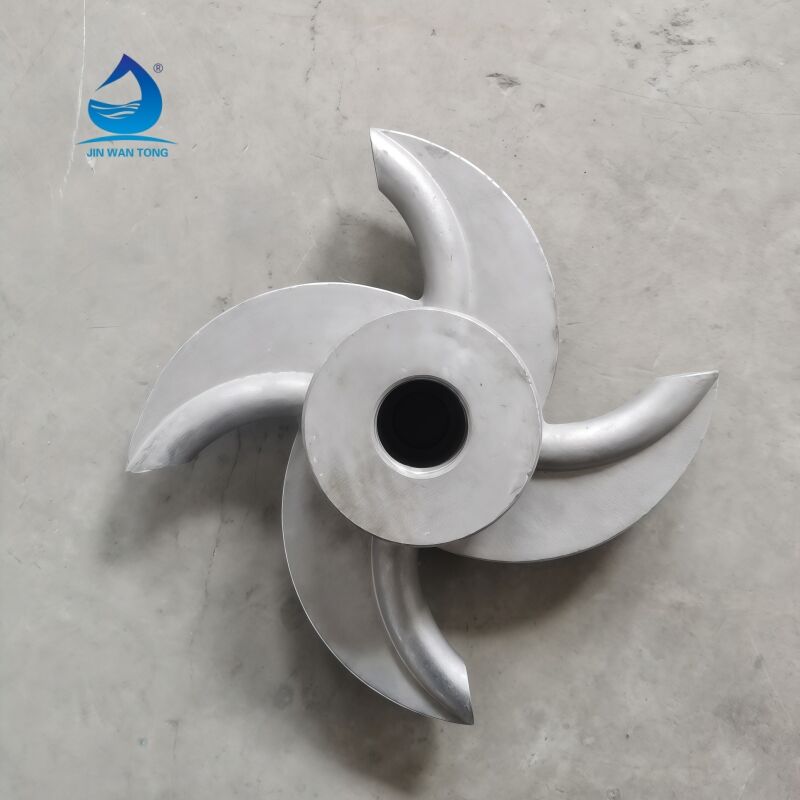

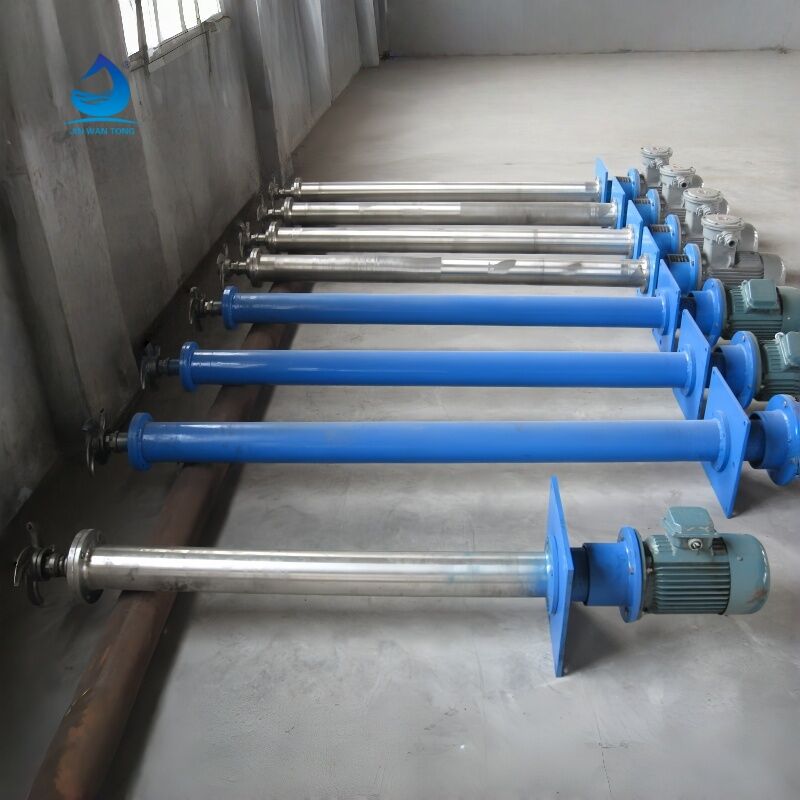

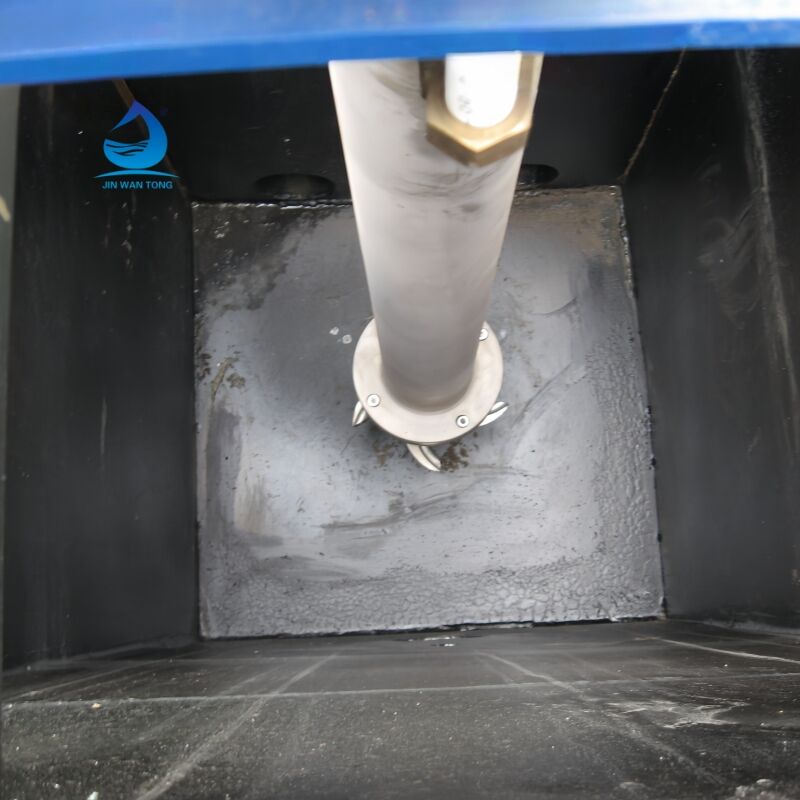

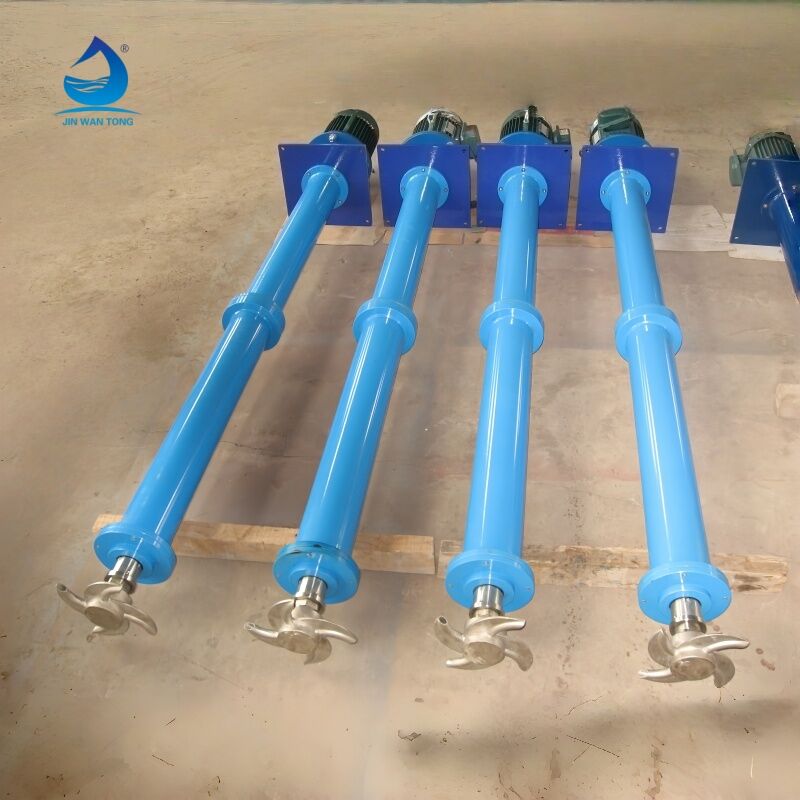

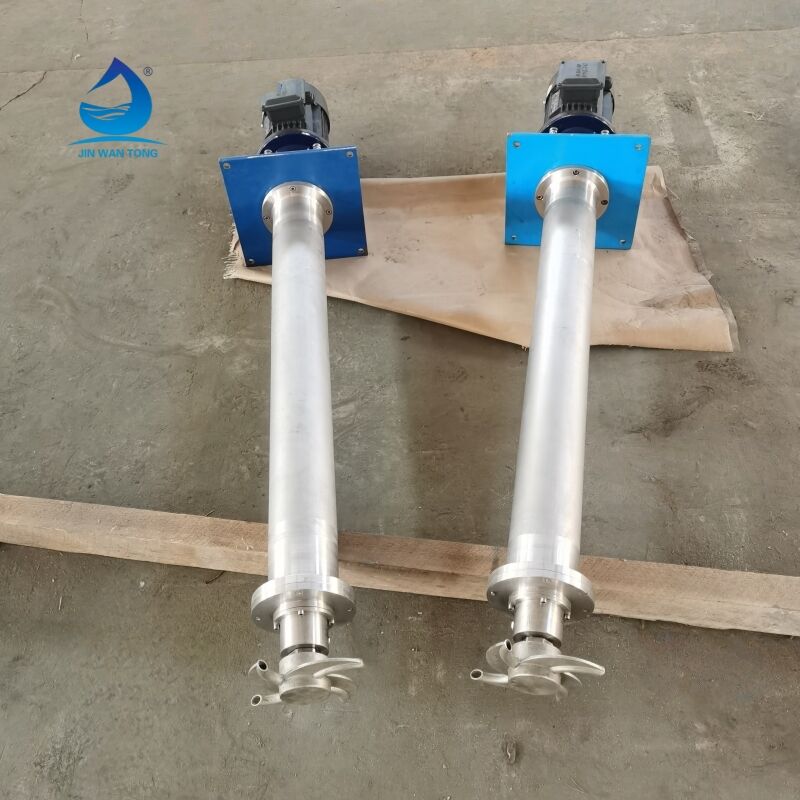

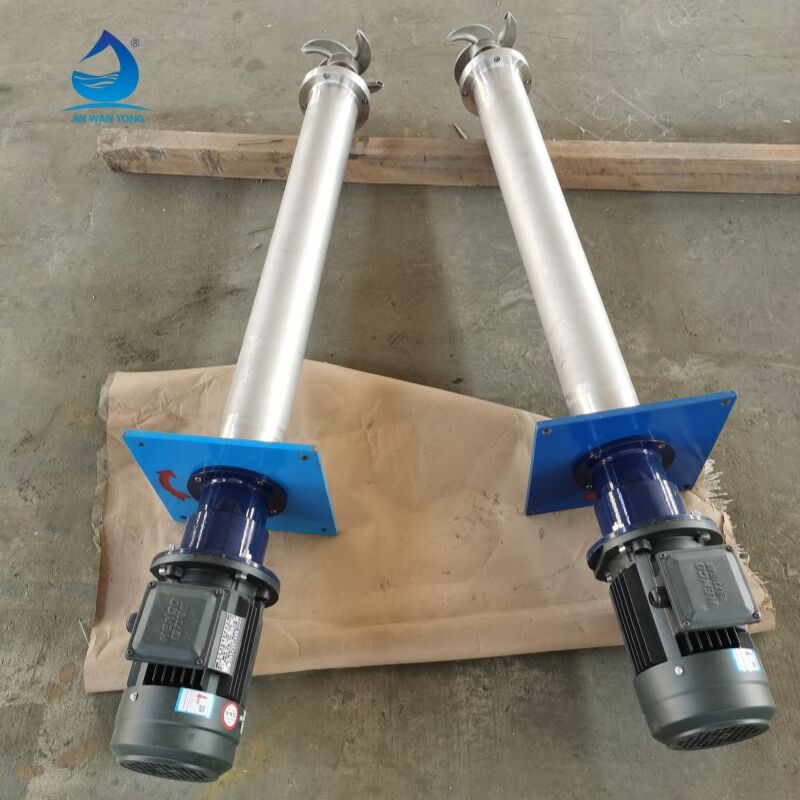

Aerator is the main component of DAF series Cavitation Air Flotation Machine(CAF) machine. It uses the high speed rotation of motor to drive the impeller to rotate at high speed. When the aeration impeller rotates at high speed under water and stirs the water flow, it generates negative pressure and inhales air through the air suction hole. After the impeller at high speed in the water will bring into the air at the bottom of the pool body cutting micro air bubble formation, the coagulant and flocculant, under the joint action of suspension physical flocculation and chemical flocculation, forming a large suspension floccules, under the effect of bubble group of ascending "floccules" floating on the liquid surface scum formation, utilization of slag scraper separation from water.
QDCAF series Cavitation Air Flotation Machine(CAF) machine is a new type of solid-liquid separation equipment specially designed for removing grease, colloidal substances and solid suspended solids from industrial and municipal sewage. For different wastewater, by adding appropriate flocculant and coagulant aid, COD and BOD can be removed more than 30% to 80% in this pretreatment stage (the use of agents and removal efficiency need to be determined by experiments). The removal rate of oil and suspended matter is more than 80%-95%. Adding decolorizing agent and dephosphorizing agent can effectively remove chroma and phosphate ion.
Noted: By adding appropriate chemical agents, the removal rates of suspended particulate matter (SS) and Oil can reach above 90%.
Applications:
Sewage treatment: In municipal sewage treatment plant and industrial wastewater treatment process, bubble aerator is used in activated sludge method and other biochemical treatment process to promote the decomposition of microorganisms on organic matter and enhance the biodegradation capacity of wastewater. Aquaculture: In the fishery aquaculture, especially in high-density aquaculture system, the bubble aerator provides sufficient dissolved oxygen, maintains the appropriate dissolved oxygen concentration in the water body, and guarantees a good living environment for fish and other aquatic organisms. Ecological restoration: In the restoration process of lakes, rivers, wetlands and other natural water bodies, the bubble generator can be used to increase oxygen at the bottom, which helps to improve water quality and restore the balance of the ecosystem. Agricultural irrigation and soil improvement: The use of bubble generator in agricultural irrigation can improve the oxygen content of the water body, which is favorable for root absorption, and can also be used for the improvement of anaerobic soil. Landscape water maintenance: park lakes, artificial lakes, landscape rivers and canals and other landscape water bodies need to maintain water clarity, biodiversity, the use of bubble generator can effectively improve the self-purification capacity of the water body. Food and Beverage Processing: In certain food and beverage processing, bubble generators can be used as part of the cleaning and sanitizing process for efficient gas diffusion in wash tanks or containers. Laboratory research and biotechnology: Bubble generators are also used to provide a stable gas supply and good gas mixing conditions in scientific research experiments such as biofermentation and cell culture.
Specifications:
| Model | Capacity(m³/h) | Length(m³/h) | Width(m³/h) | Depth(m³/h) | Total power(m³/h) |
| QDAF-5 | 5 | 2.94 | 0.93 | 1.23 | 1.6 |
| QDAF-10 | 10 | 3.55 | 1.23 | 1.23 | 1.6 |
| QDAF-15 | 15 | 4.1 | 1.23 | 1.23 | 1.6 |
| QDAF-20 | 20 | 4.6 | 1.23 | 1.23 | 1.6 |
| QDAF-25 | 25 | 5.1 | 1.52 | 1.83 | 2.94 |
| QDAF-35 | 35 | 5.72 | 1.52 | 1.83 | 2.94 |
| QDAF-50 | 50 | 6.33 | 1.8 | 1.83 | 2.94 |
| QDAF-75 | 75 | 7.55 | 2.41 | 1.83 | 2.94 |
| QDAF-100 | 100 | 8.77 | 2.41 | 1.83 | 5.5 |
| QDAF-150 | 150 | 12.3 | 2.41 | 1.83 | 5.5 |
| QDAF-175 | 175 | 14.5 | 2.41 | 1.83 | 5.5 |
| QDAF-200 | 200 | 16.09 | 2.41 | 1.83 | 7.7 |
| QDAF-320 | 320 | 16.09 | 3.05 | 1.83 | 8.1 |
| QDAF-400 | 400 | 17.6 | 3.5 | 1.83 | 10.3 |
| QDAF-500 | 500 | 21.62 | 4.4 | 1.83 | 14.7 |
Competitive Advantage:
1. Large amount of water treated by monomer and fast microbubble generation.
2. Simple installation, low noise, simple maintenance and operation.
3. Single or multiple parallel machines can be selected according to the actual amount of water treated.
4. Negative pressure suction, no air compressor and gas tank, low power consumption.
5. Adopting no mechanical seal structure solves the problem of bearing water damage caused by scale damage of mechanical seal due to high hardness of sewage.
FAQ
Q1:Are you a factory or trading company?
A1:We are a real manufacturer who can offer you both the most competitive price and top quality products.
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Qingdao City Shandong Province, All our clients, from home or abroad, are warmly welcome to visit us!
Q3:Can you put my company brand (logo) on the products?
A3:Yes,we support OEM/ODM service,the customize process as follows:
1.Customers put forward personalized customization requirements.
2.Our engineer draw the design draft.
3.Customer confirm the design draft.
4.Factory start to produce shipment.
Q4:How to select right model?
A4:You can tell us what you need, and we can help you choose the Model.Basic informations as follows:
Wastewater type : Industry wastewater, Domestic wastewater, food wastewater or others)
Capacity:m³/Day or m³/Hour?Raw water quality: SS, Oil & Grease &Fat & FOG, PH,BOD,COD content?
Output water quality standard,for discharge or reuse?
Local voltage and frequency?
Q5: What is your MOQ?
A5:Normally, our MOQ is 1 set.
