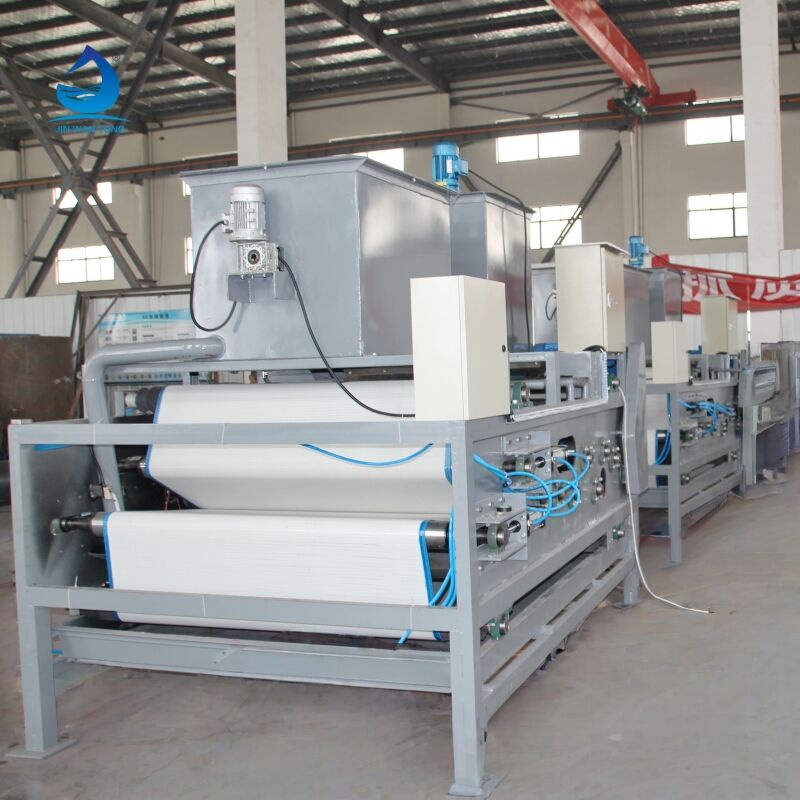

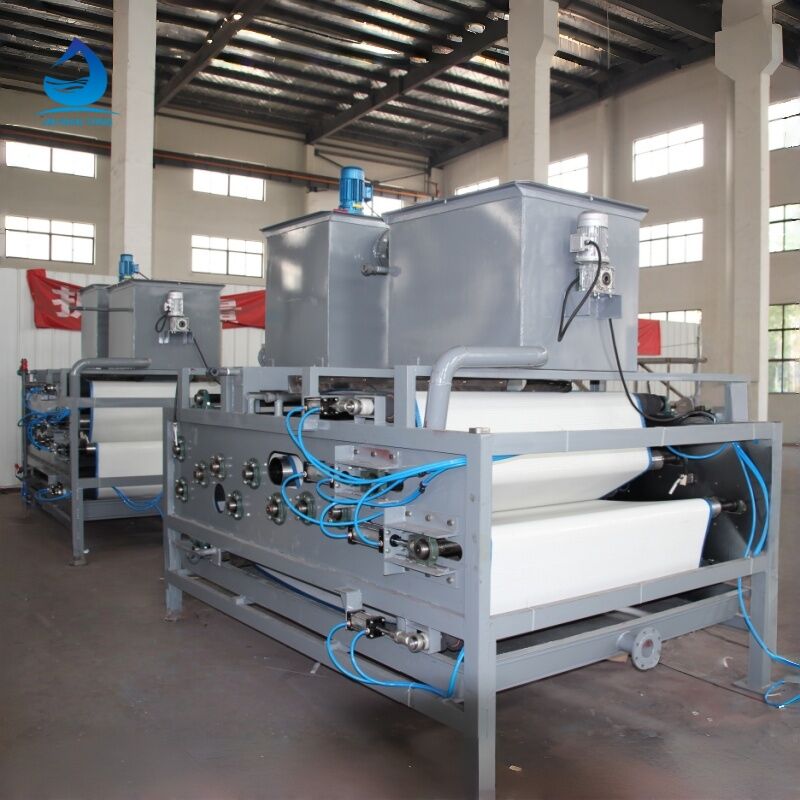

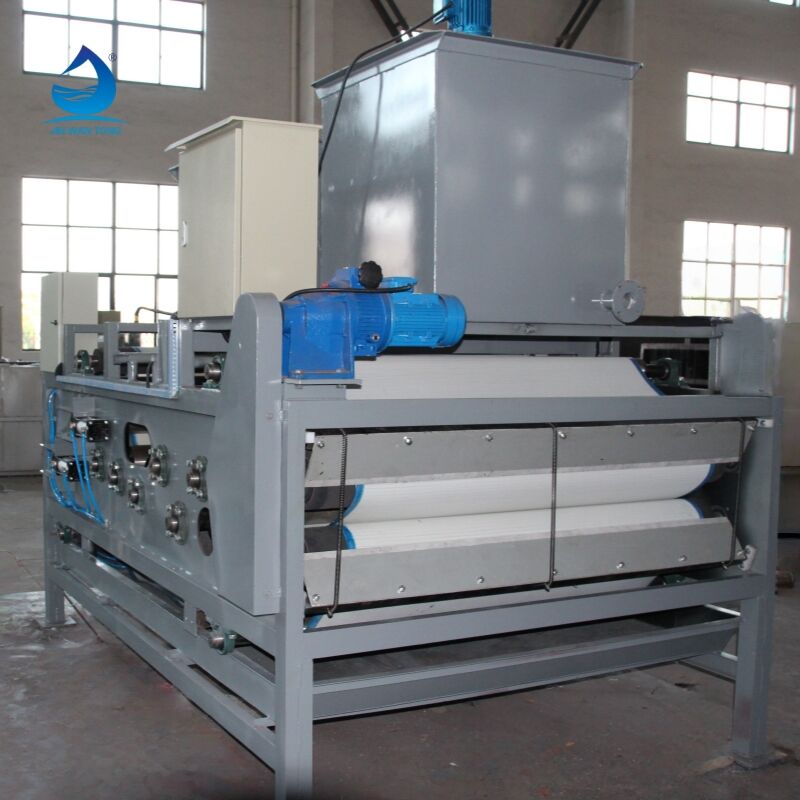

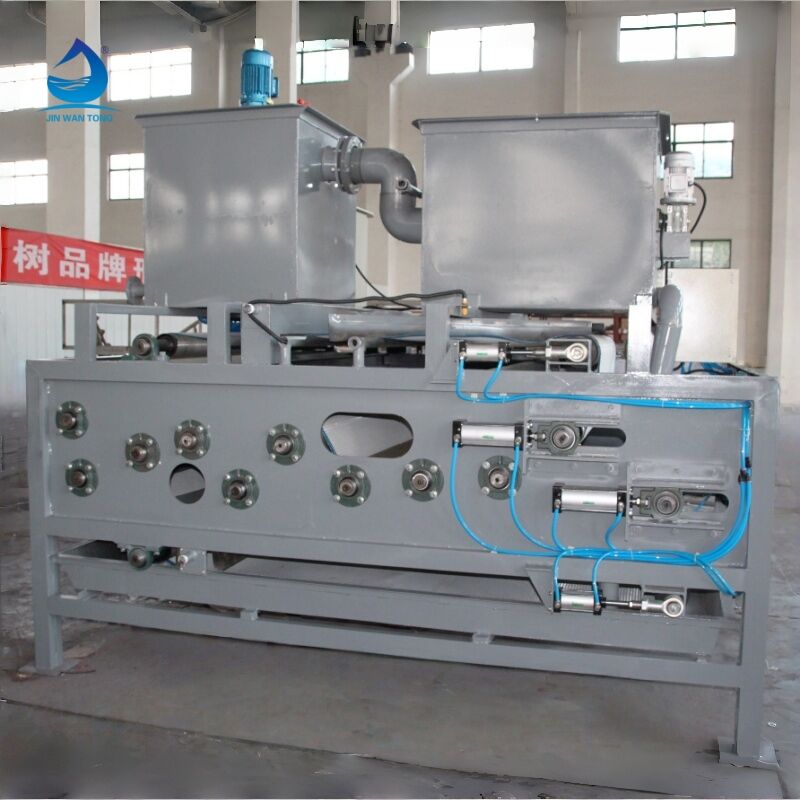

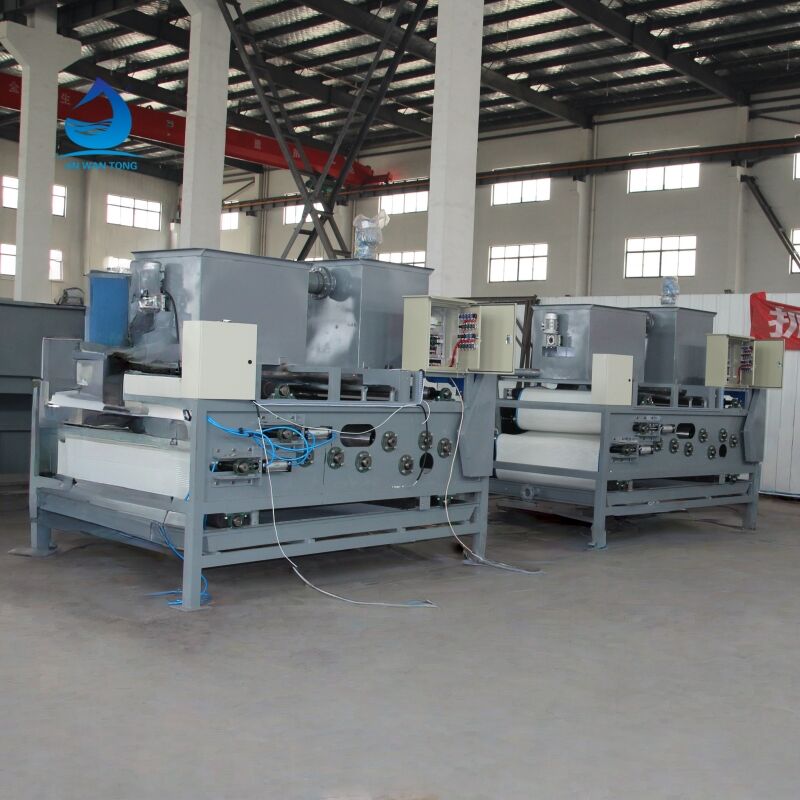

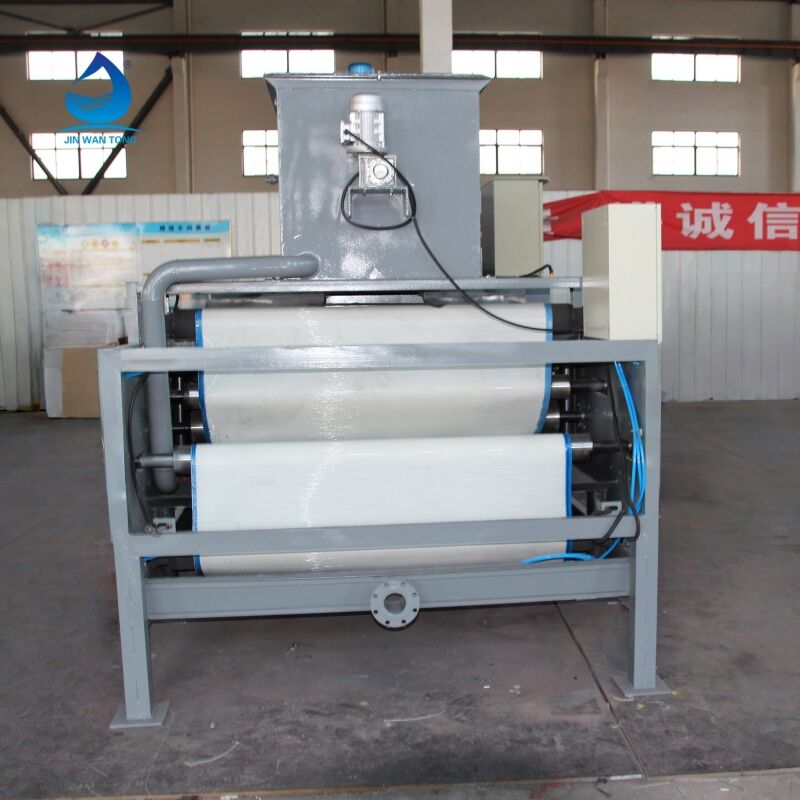

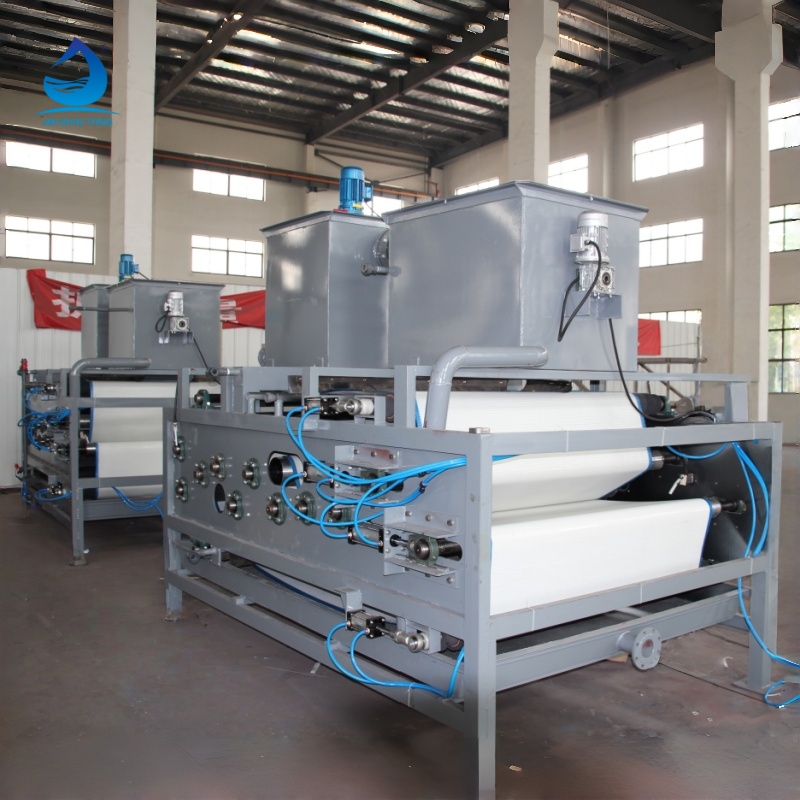

Belt Filter Press High Efficiency Automatic Solid Liquid Separation Equipment for Waste Water Treatment
Quick Detail:
used for sludge dewatering in municipal sewage treatment plants, pharmaceutical industry,
electroplating industry, paper industry, leather industry, printing and dyeing industry, metallurgy industry, chemical industry,
slaughter industry, food industry, wine manufacturing factory and environmental engineering plants.
- Overview
- Recommended Products
| Place of Origin: | Shandong,China |
| Brand Name: | JINWANTONG |
| Model Number: | JWT-STE |
| Certification: | CE/ISO |
| Minimum Order Quantity: | 1SET |
| Delivery Time: | 30DAYS |
| Payment Terms: | ALL |
Description:
Belt filter press is a new type of high efficiency solid-liquid separation machinery. After the sludge is fully mixed in the sludge mixer by adding flocculant, the solid particles in the material are condensed into clumps, and the free water is separated.The condensed materials are transported to the sludge high-efficiency concentrator for solid-liquid separation, and the separated solid particles are transferred to the gravity dewatering area of the belt filter press through self-pressure and self-flow. Under the action of gravity, most of the free water is filtered to form a non-flowing sludge state, and then it is sandwiched between the upper and lower filter belts through the wedge area, and it is pressed into a filter cake under the action of pressure from small to large, and the upper and lower filter belts are washed and reused.
What is a belt filter press?
Belt filter press is also called belt press or belt mud dehydrator, is widely used in both domestic and abroad market for its excellent performance and low investment & costs.
Belt filter press embodies all the recognized principles of good belt filter press design. It is simple, reliable and easy to operate. The design has sufficient flexibility to accommodate nearly all types of sludge which are likely to be generated in a treatment facility.
All components are rugged, heavy-duty industrial quality suited for continuous 24 hr./day, 7 day/wk. service. As a experienced belt filter press supplier, we have been over 9 years in manufacturing and designing of belt filter press since 2006.

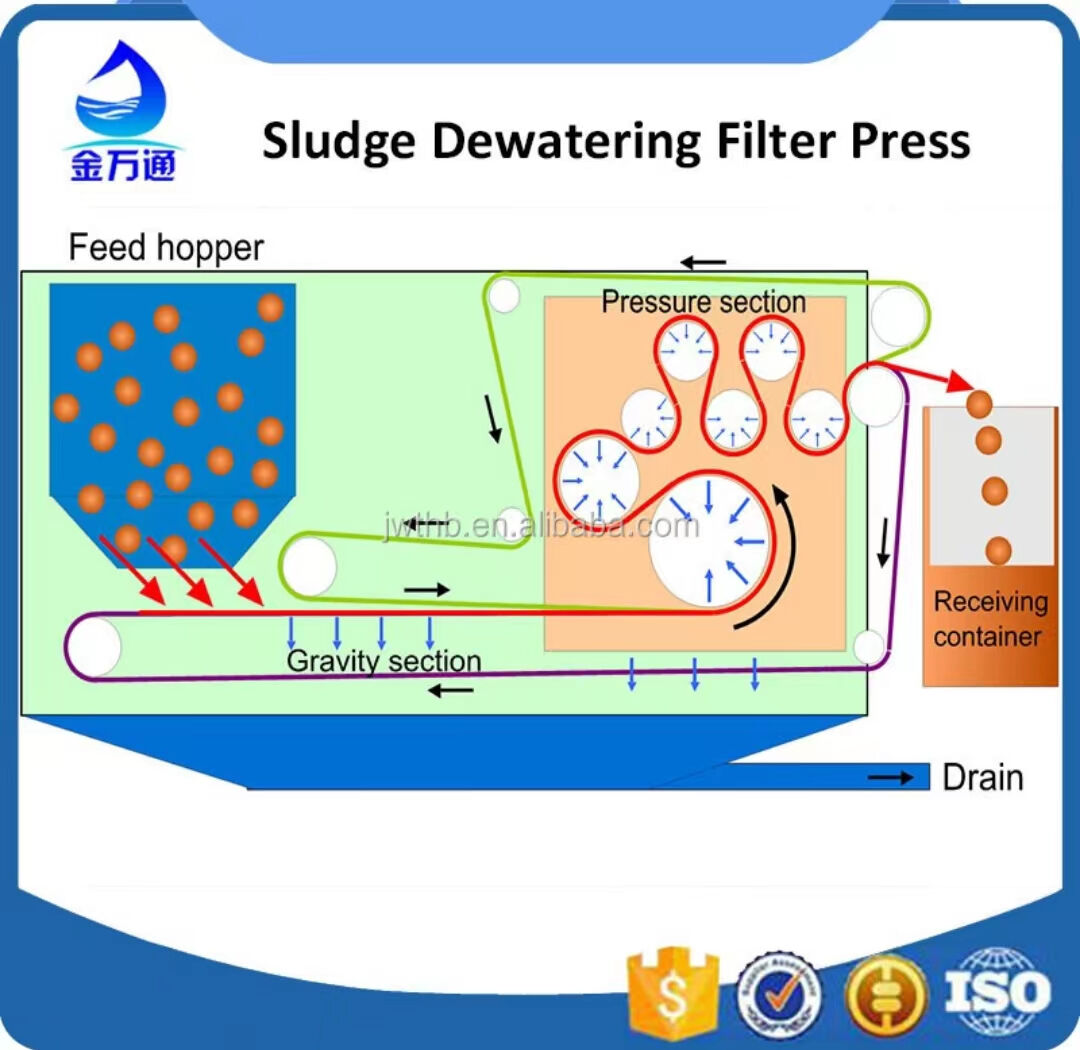

Working principle of belt filter press : Free water and sludge is fully separated at gravity dewatering zone and then enter into 3-stage pressure dewatering zone---pre-pressure rollers, low pressure rollers and high pressure rollers.
Sludge is gradually dewatered under pressure and is discharged as sludge cake. JWT series belt filter press is your ideal choice for sludge dewatering.
JWT belt filter press is simple and easy to maintain, sludge cake moisture content rate is very low.
Product features of belt filter press:
Fully automatic, save labor.
Small vibration and low noise.
Excellent performance with very small footprint.
Adaptable for nearly all types of sludges, high efficiency with large treatment capacity.
Dewatering happens in several zone one by one with high dewatering efficiency, sludge cake moisture content is much low.
Belt filter press can run continuously around the clock, and can automatically backwash, easy to maintain.
Low energy consumption and low running costs.
Filter belt deviation can be automatically calibrated, more safe.
Strong technical team and strict final inspections ensure excellent quality and long service life of our belt filter press.
Cheap factory price from 8 year experience belt filter press supplier for you.
Applications:
Uses of belt filter press:
JWT belt filter press is mainly used for sludge dewatering in municipal sewage treatment plants, pharmaceutical industry, electroplating industry, paper industry, leather industry, printing and dyeing industry, metallurgy industry, chemical industry, slaughter industry, food industry, wine manufacturing factory and environmental engineering plants. Also JWT belt filter press can be used for solid-liquid separation and resource recovery in industrial production, like:
In steel plants: Dewater and recycle iron powder.
In wineries: solid-liquid separation from vinasse.
In stone factories: Dewater and recycle stone powder.
SPECIFICATION
| Model | JWT10 | JWT15 | JWT20 | JWT25 | JWT30 |
| Belt Width(mm) | 1000 | 1500 | 2000 | 2500 | 3000 |
| Treatment Capacity(m3/h) | 4/15/ | 6/25/ | 8/30/ | 10-40 | 15-50 |
| Power(kw) | 2.2 | 2.2 | 3 | 3 | 5.5 |
| Washing Water Consumption(m3/h) | ≥6 | ≥8 | ≥12 | ≥16 | ≥18 |
| Washing Water Pressure(Mpa) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.6 |
| Air Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.5-0.8 |
| Mud Cake Moisture Content(%) | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 |
Competitive Advantage:
1. Automatic control, continuous.
2. Low energy consumption,long service life.
3. High dehydration efficiency and high solid content of mud cake.
4. Easy to manage,convenient maintenance.
5. Low noise, less chemical agents.
6. Economic and reliable, wide range of applications.
FAQ
1.How is the filtering effect of the equipment?
Generally speaking, it is effective in removing suspended solids in sewage. The COD and BOD indicators of the treated sewage can be greatly reduced to meet the national discharge standards or reuse standards, and the content of nutrients such as nitrogen and phosphorus in sewage can be reduced. Avoid eutrophication of water bodies.
2.What is the technical principle of the device?
Sewage treatment equipment is mainly based on sedimentation,filtration,flotation, adjusting the pH of sewage, adding coagulants to sewage, redox reactions, AO treatment processes, and MBBR/MBR treatment processes.
3.How long is the equipment warranty period?
The warranty period of our equipment is1 year. For the exported equipment, we will provide an extra set of vulnerable parts, which can be directly replaced if they are broken.
4.How to prevent equipment corrosion ?
Our equipment is made of high-quality corrosion-resistant materials (such as 304 and 316 stainless steel), and anti-corrosion coatings are applied to the surface of the equipment. More importantly, we strictly follow standard procedures for painting.
