Wastewater Filtration & CPI Oil-Water Separation System with PLC Pump & Motor

Wastewater Filtration & CPI Oil-Water Separation System with PLC Pump & Motor

Quick Detail:

grease trap

Oil water seperate

Overview
Recommended Products

Place of Origin:	Shandong, China
Brand Name:	Jinwantong
Model Number:	JWT-CPI
Certification:	CE/ISO
Minimum Order Quantity:	1SET
Delivery Time:	30DAYS
Payment Terms:	ALL

Description:

The deoiling principle of dense corrugated plate is mainly to use the specific gravity difference between oil and water to make oil beads float on the wave crest of corrugated plate and separate and remove them. The key is that corrugated plate made with the help of shallow pool sedimentation principle by Professor HAZ2EN of Germany can change the distance and streamline of water flow, and the cross section of water flow is changed. The alternating flow of water diffusion and contraction produces sinusoidal water flow, which increases the collision probability between oil beads, and the oil beads change from small to large, thus accelerating the floating speed of oil and water.The biggest advantage of this equipment is physical separation, which does not destroy the chemical properties of oil and can realize the recycling of oil.

--- gravity separation of oil from oily effluents

CPI is one kind of high efficient oil-water gravity separator, now is widely used in oily wastewater treatment to remove bulk oil from water.

Gravity separation is the most straightforward method of wastewater treatment and is, therefore, utilized widely in industry for separation of settling and/or floatable impurities from a carrier liquid.

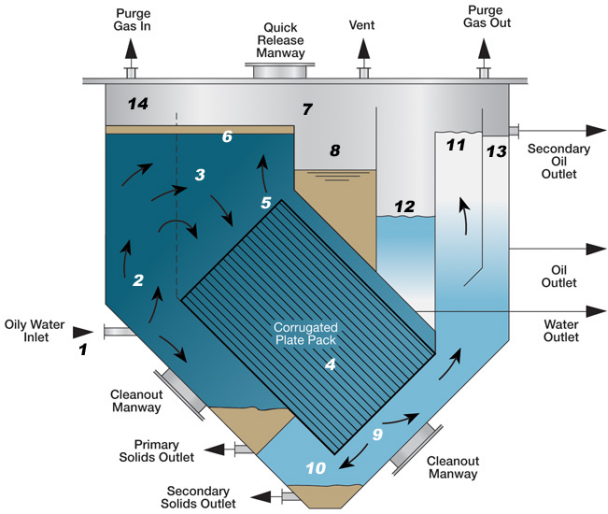

An enlarged separating surface can be achieved by placing various smaller planes on top of each other in the tank. If these planes are subsequently inclined in a tilted position, material separated between the plates is removed by the gravitational force. This is the principle on which the CPI corrugated plate pack is based.

In this plate pack the planes as referred to have been constructed in the shape of corrugated plates. They promote both the coalescence of the intercepted oil particles and, at the same time, their transfer through the plate pack.

If settleable material is present in the liquid, such material is collected and concentrated in the troughs of the corrugations so that it will slide down in the plate pack smoothly and easily.

Very small separating diameters can be obtained in the CPI system, because the disturbing factors, such as eddies and turbulences, which adversely affect large conventional separating tanks (e.g. API’s), are eliminated in the CPI.

In formulating a design, the following minimum data are essential:

* the type of pollutants to be intercepted

* the separating diameter of the oil droplet

* the difference in density between the carrier liquid (waste water) and the pollutants to be intercepted

* the maximum amount of water to be treated

* the water temperature

* the sedimentation velocity

* origin of the oily liquid

* physical data, chemical analysis of carrier phase.

Applications:

Automatic cooking oil water separator is widely applicated to large scale buildings, including (basement or underground) commercial complex, living square, Department store, large supermarket, hotel, hospital, school,office building, apartment, station, airport, industrial park, restaurant, food plaza and other places containing oily sewage. The size of the equipment can be customized according to different users, different displacement and different working conditions. Equipment configuration can be configured according to customer preferences.

Specifications:

Model	Handling capacity（m3/h)	Dimension(mm)			CPI Modules（sets）	Table of pipe connection（DN）
Model	Handling capacity（m3/h)	Length	Width	Heigth	CPI Modules（sets）	Inlet	Outlet	Main oil outlet	Secondary oil outlet	Sludge outlet	Backwash outlet
CPI-5	5	2134	1134	2000	1
CPI-10	10	2634	1134	2450	1
CPI-20	20	2318	2138	2450	5	100	100	50	50	65	50
CPI-30	30	3200	2172	2420	3	2*65	150	65	65	3*80	80
CPI-40	40	4220	2172	2420	4	2*100	150	80	80	3*80	65
CPI-50	50	5220	2172	2420	4	2*100	150	80	80	3*80	80
CPI-75	75	8294	2216	2400	8	3*150	200	100	100	5*100	80
CPI-100	100	10300	2172	2320	10	4*150	2*150	2*100	2*100	6*100	2*80

Competitive Advantage:

1. The biggest advantage of this equipment is physical separation, which does not destroy the chemical properties of oil and can realize the recycling of oil.

2. This is a patented product developed by our company.

3. Small floor space, saving space cost.
