MBBR Intelligent Compact Unit for Wastewater Treatment Plant and Integrated Sewage Treatment System
Quick Detail:
Wasterwater treatment system, packaged sewage treatment equipment，Integrated Sewage Treatment Equipment，sewage treatment system
- Overview
- Recommended Products
| Place of Origin: | Shandong,China |
| Brand Name: | Jinwantong |
| Capacity | 200L~10000L |
| Certification: | CE/ISO |
| Minimum Order Quantity: | 1 |
| Delivery Time: | According to the order quantity. |
| Payment Terms: | All |
Description：
Product information
START WITH INGENUITY AND FOCUS ON QUALITY
Working Process
MBBR is one kind of new type high effective reactor which between activated sludge method and the fixed biofilm method.sewage continuous pass by the reactor which equipped with mobile packing, it will form into biofilm when grow in packing, large microorganism breed in the biofilm,autotrophic and heterotrophic microorganisms using c,n,p,etc in water to make metabolism , thus to to realize purify sewage function. It is based on the SBR techniques ( sequencing batch reactor) developed a new kind matched equipment which can make up SBR many deficient.
Product features
(1) the sludge concentration higher, ordinary sludge concentration is the 5~10times activated sludge process, the sludge quality concentration in aeration pond can reach 30~40g/L.
(2) no easy blocking, no need back washing and back flow.
(3) as suspended padding of the process core with the aerobic and anaerobic me-tabolism, can better denitrification and dephosphorize.MBBR technique feature
(4) small occupy area,Large amount of activity of microorganisms
(5) MBBR is a fill media or carrier, suitable for suspended attached growth water treatment system. This popular technology is possibly the best solution for the reduction of installations volume or to increase existing water treatment plants capacity with little and affordable layout changes.

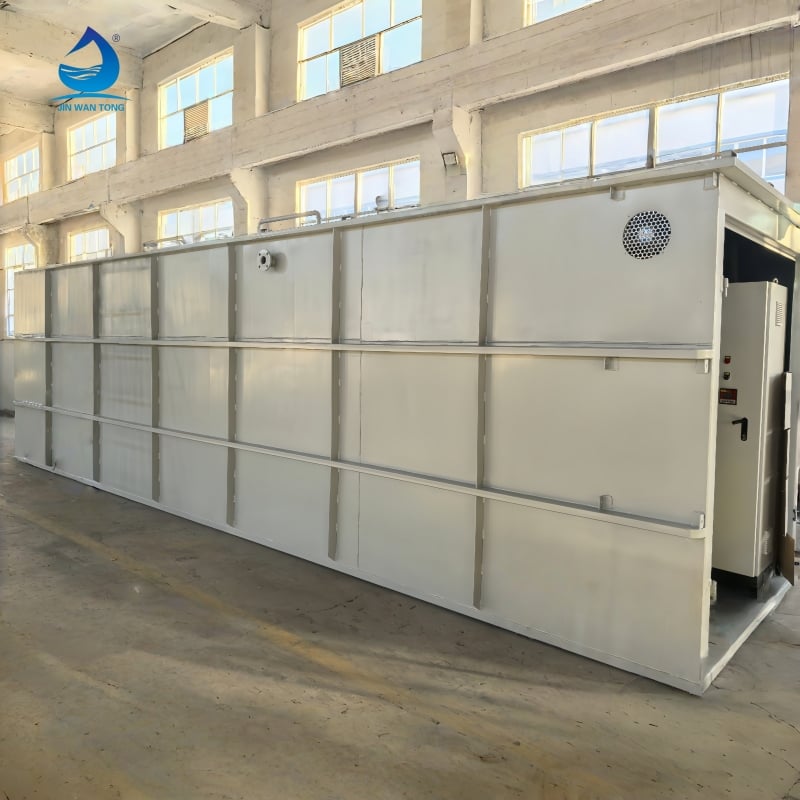

Exterior design:

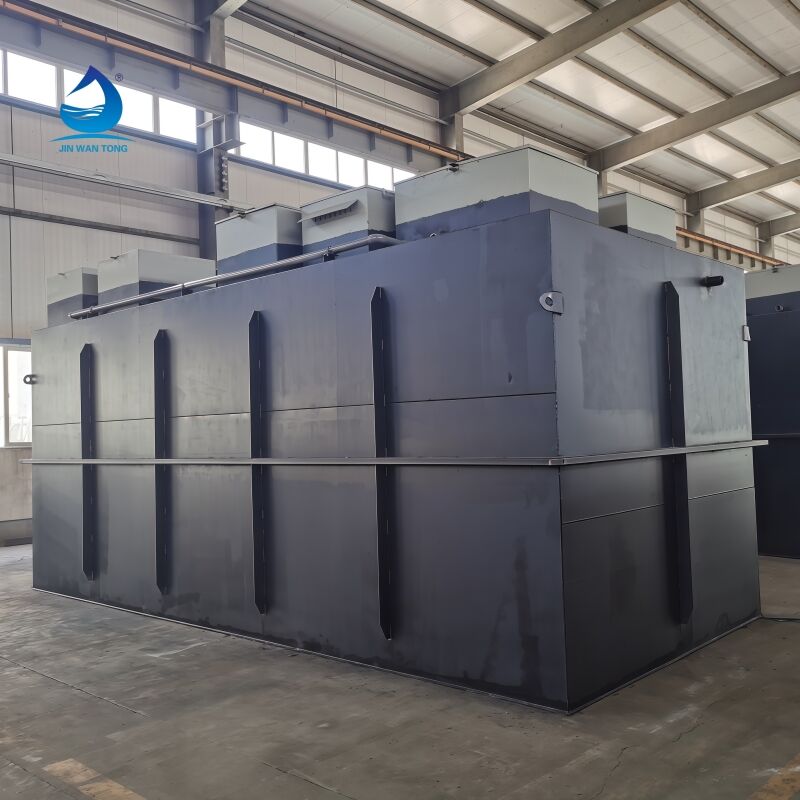

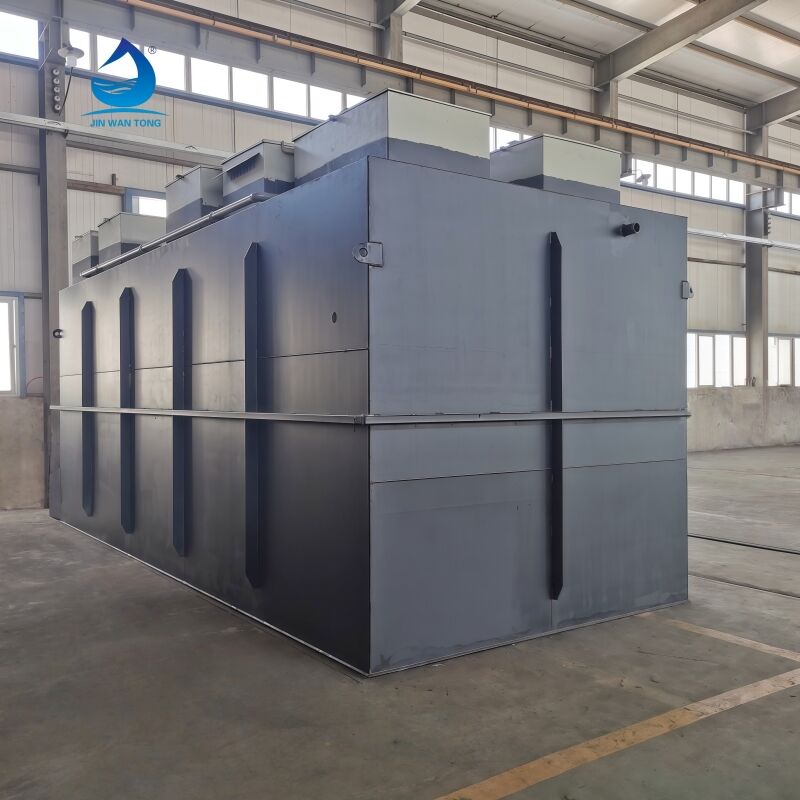

Its tank body material adopt Carbon steel lining with epoxy anticorrosive paint or glass fiber coating; different color appearance can be customized according to needs.
Interior design:

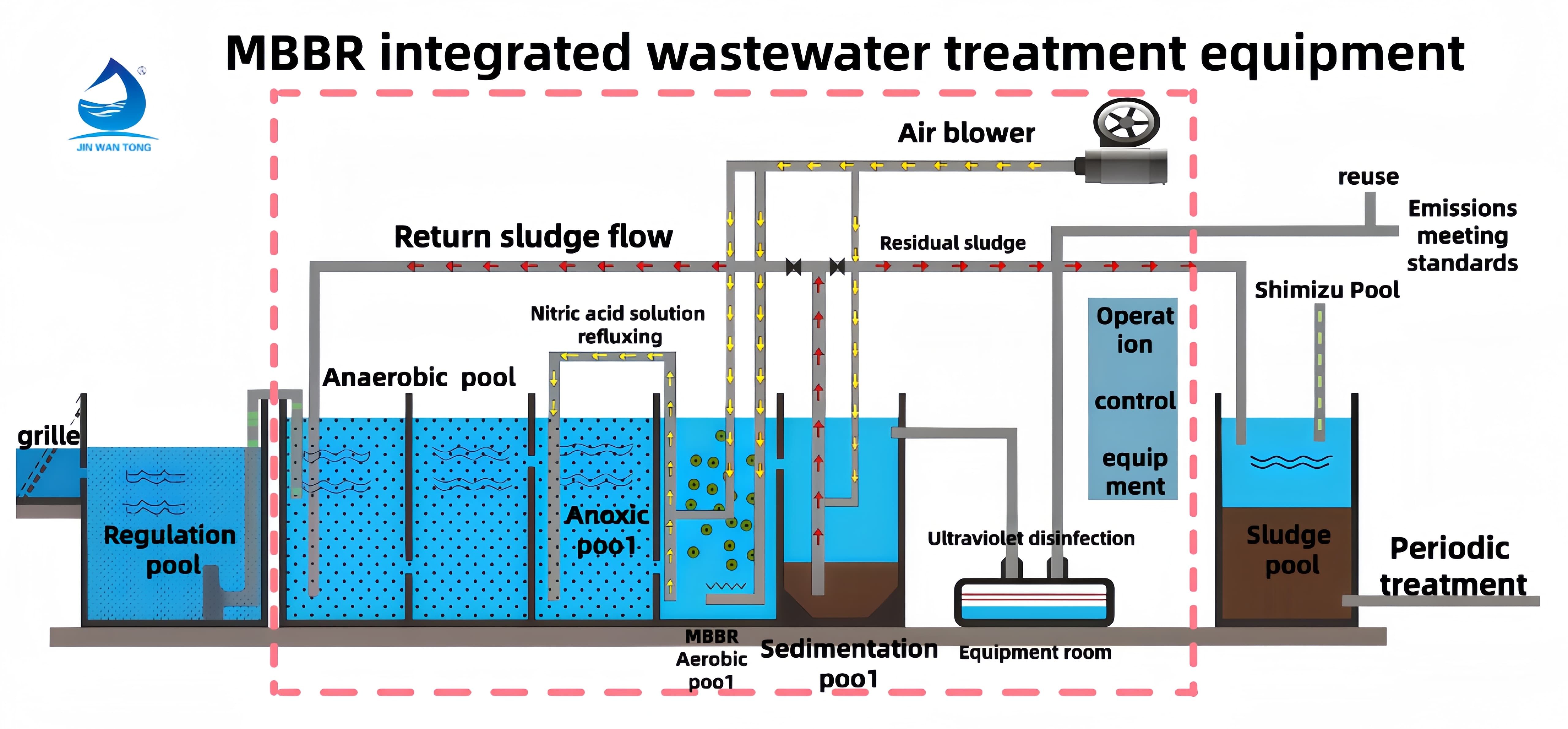

lt consists of seven parts:Primary settling tank、Anoxia tank、Contact oxidation .secondary clarifier、 disinfection tank、sludge-tank、draught fan.
LEARN MORE ABOUT STRUCTURAL PERFORMANCE
SIMPLE OPERATION AND LONG USE
simple operation,stable operation,usually do not need special management
Applications:
Slaughterhouse wastewater
Fish Processing Wastewater
Restaurant wastewater
Domestic sewage
meat Processing Wastewater
camp Sewage Treatment
Paper mill wastewater
Industrial wastewater(dying Wastewater,coagulent wastewater,etc.)
Hospital sewage
textile Waste
Specifications:
| Place of Origin: | Shandong,China |
| Brand Name: | Jinwantong |
| Capacity | 200L~10000L |
| Certification: | CE/ISO |
| Minimum Order Quantity: | 1 |
| Delivery Time: | According to the order quantity. |
| Payment Terms: | All |
Competitive Advantage:
High Percentage
High percentage of Biomass in contact with wastewater
Efficiency
The biological process is very fast
Flexibility
Elevated flexibility in fact there are no particular limitations due to the basin shape
Little effect
The process is practically not influenced by the suspended solids presence.
FAQ
1. Q: Are you a manufacturer or a trader?
A: We are a manufacturer integrating design, manufacturing, construction, installation, and after-sales service.
2. Q：What is the service life of the integrated sewage treatment equipment? Does it need to be replaced regularly?
A: The sewage treatment equipment anoxic zone filler is a combined filler, and its material is plastic with corrosion resistance, uniform tensile force, so it is not easy to break during operation, the service life is more than 8 years, beyond the service life needs to replace the new filler.
Aerobic zone filler is MBBR filler. It features high pollutant removal efficiency, small floor space, and convenient maintenance. Moreover, it has a long service life and doesn't need to be replaced for more than 10 years. The MBBR filler costs are higher than other types of fillers, but operating and maintenance costs are low.
3. Q: Can you meet my special requirements for the product?
A: Yes, we have a professional design team. We can provide foundation drawings upon your request.
4. Q: What matters should be paid attention to in the transportation and storage process of integrated sewage treatment equipments?
A: The transportation and storage of integrated sewage treatment equipment should prevent severe impact, falling. The attached electronic equipment should be rainproof and waterproof.
5. Q: How to discharge mud from the sewage treatment equipment?
A: The sewage treatment equipment adopts the contact oxidation process, which generates a relatively small amount of residual sludge. Therefore, it is only necessary to use a sludge suction truck to regularly suck and discharge the sludge according to the sludge level in the sedimentation tank.
6. Q: What’s your terms of payments?
A: We accept T/T, L/C, Paypal, MoneyGram. T/T is better.
7. Q: How to install the equipment?
A: We will provide you with detailed instructions and installation manuals.
8. Q: How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.
