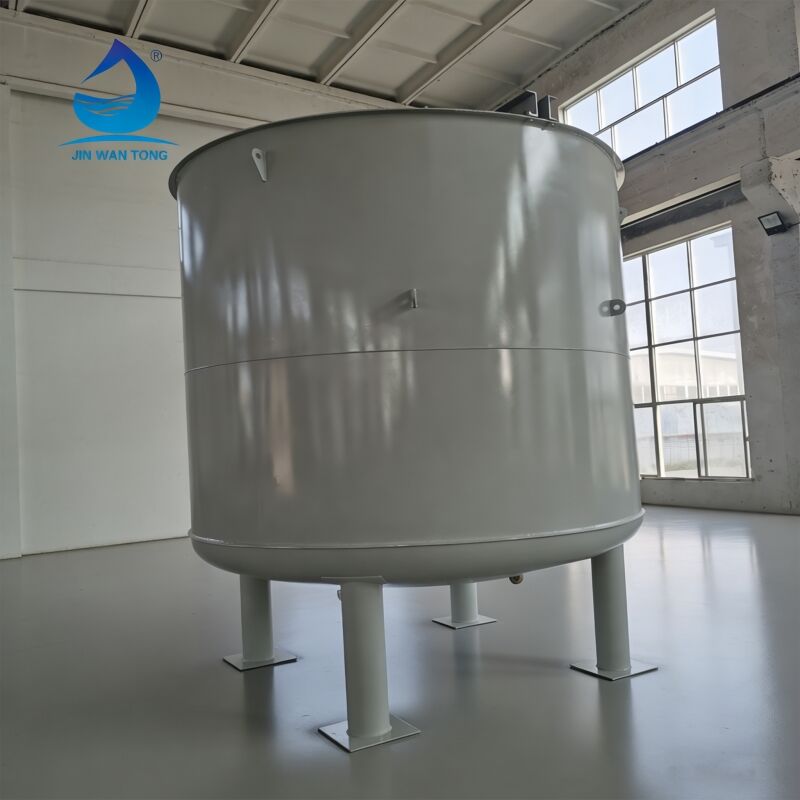

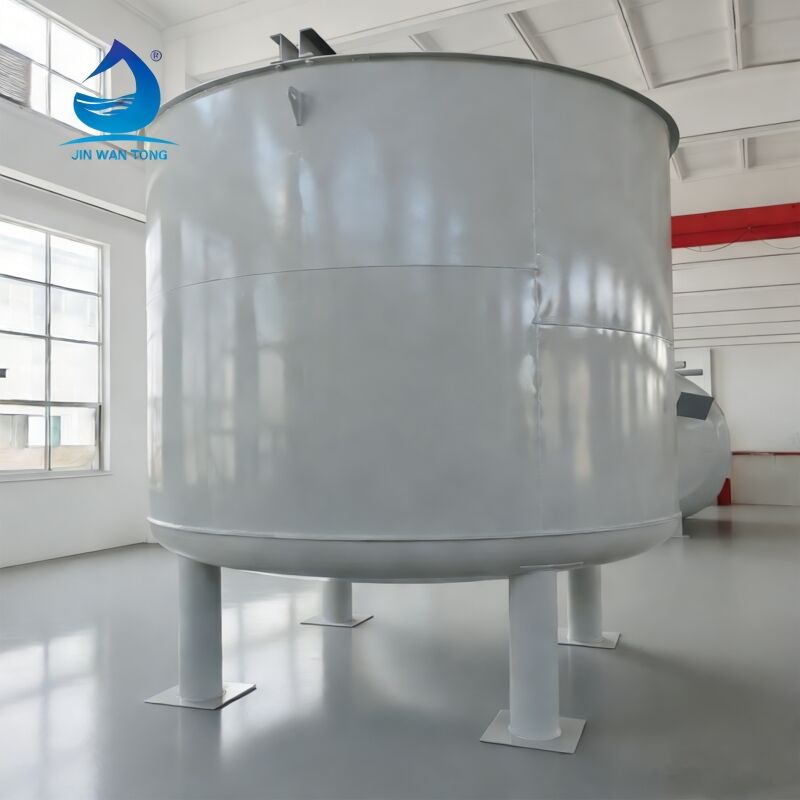

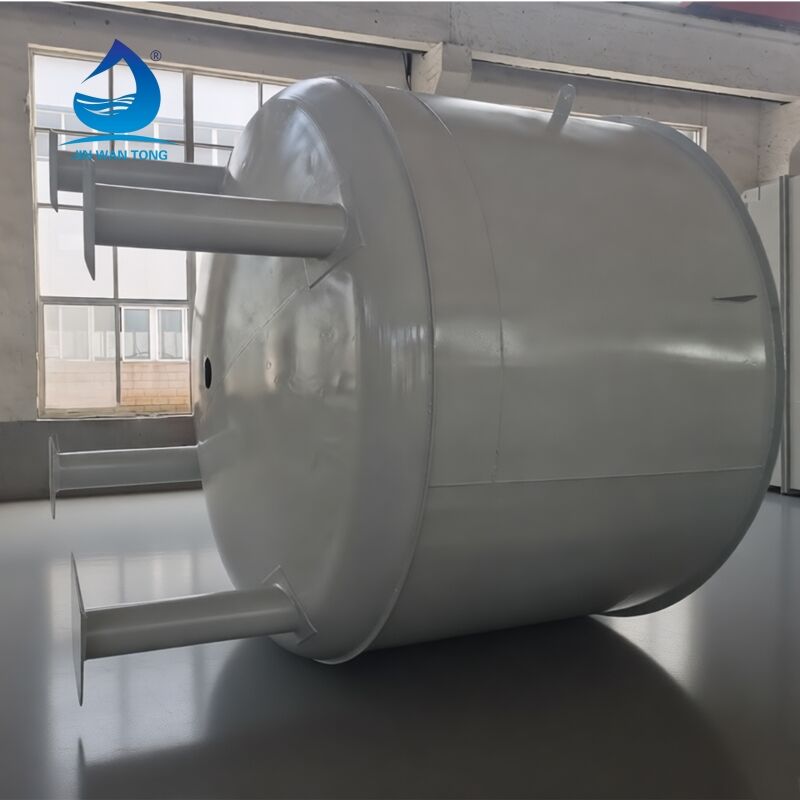

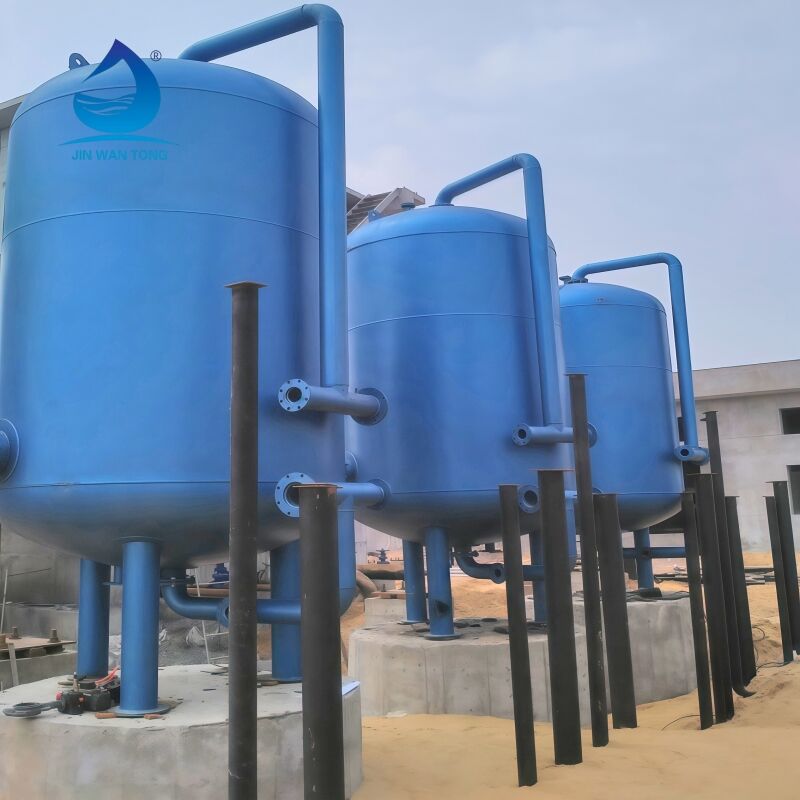

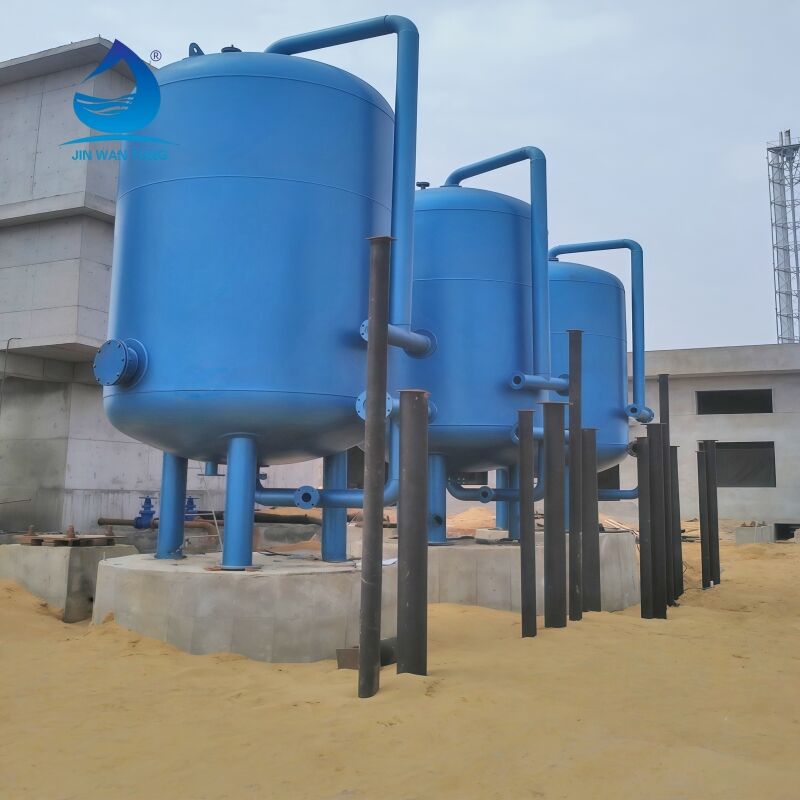

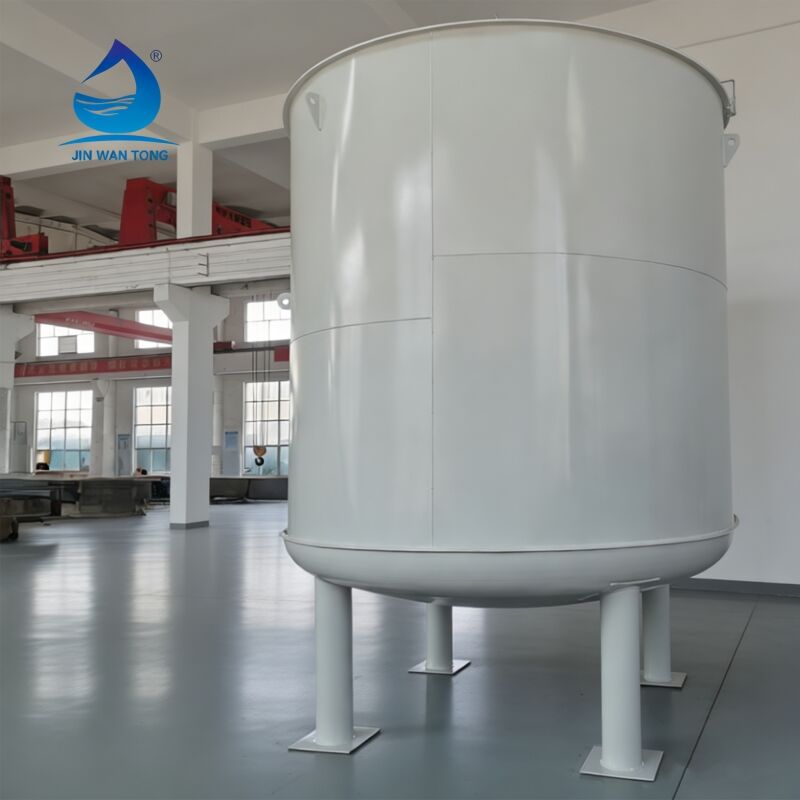

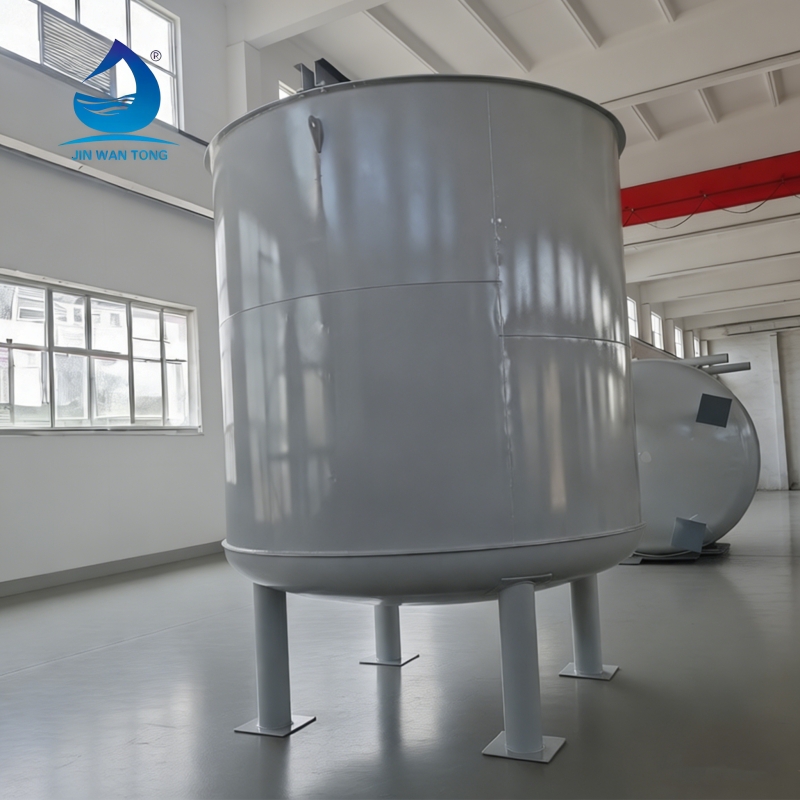

Carbon Steel Multimedia Quartz Sand Activated Carbon Filtration For Industrial Sewage Treatment
Quick Detail:
Multimedia filter/Multi-media mechanical filter
Industrial Applications
Poultry processing. Meat processing. Laundries and textiles. Egg processing. Byproduct rendering. Pulp and paper. Plastics recycling. Dairy and milk products. Metal plating and finishing. Bakeries. Confectionaries. Food processing. Snack food processing. Beverage. Petroleum and petrochemical refining. Natural gas and petroleum fracking. Biochemical. Personal care products.
- Overview
- Recommended Products
Description:
The workflow of a multi-media filter is divided into three stages: filtration, backwashing, and backwashing, forming a cyclic operation mode.
1. Filtering stage. The raw water flows through a multi-layer filter material composed of anthracite, quartz sand, and activated carbon from top to bottom, sequentially intercepting large suspended particles, adsorbing small particles, and soluble organic matter, achieving gradient purification. When the operating pressure difference reaches the set value, the system automatically enters backwashing
2. Backwash stage: First, use compressed air (5-8L/s · m ²) to expand and rub the filter layer to remove dirt, then rinse the filter material with high-speed water flow and discharge for 10-15 minutes. 3. Positive washing, rinse downstream with clean water for 5-8 minutes until the effluent turbidity is ≤ 0.5NTU, completing the regeneration of the filter layer. The entire process is intelligently controlled by PLC to achieve a balance between efficient pollution interception and energy-saving operation.
3. Industrial water treatment Circulating cooling water system. In industries such as electricity, petrochemicals, and steel, circulating cooling water needs to continuously remove suspended solids to prevent heat exchanger blockage. Multi media filters can reduce turbidity to below 5 NTU and extend equipment lifespan.
4. Municipal water supply and sewage treatment Pre treatment of water plants. Combined with coagulation and sedimentation process, it can further reduce the turbidity of raw water and alleviate the load on subsequent sand filters. A certain water plant adopts the process of "coagulation+multi-media filtration+ultrafiltration", and the turbidity of the effluent water is less than 0.1 NTU for a long time, which meets the "Sanitary Standards for Drinking Water".
5. Special industry applications Pre treatment of seawater desalination. In reverse osmosis (RO) seawater desalination systems, multi-media filters can intercept large particulate matter such as seaweed and sediment, reducing the risk of biological contamination of RO membranes.

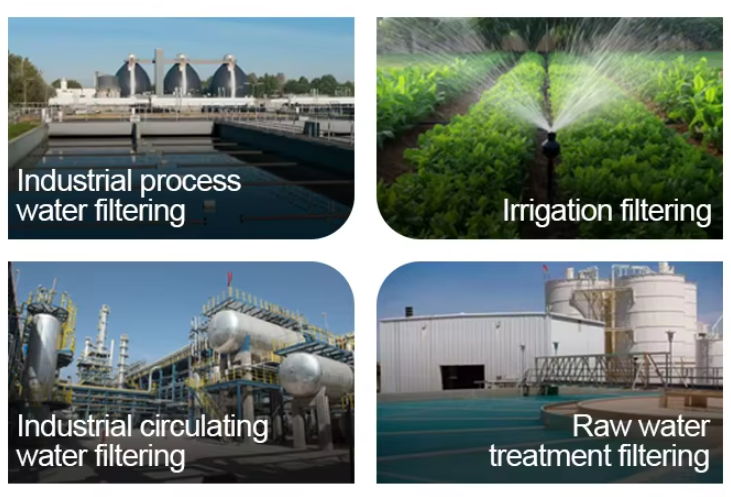

Applications:
There is a wide range of industrial and municipal applications for DAF system including:
Industrial Applications
Poultry processing
Meat processing
Laundries and textiles
Egg processing
Byproduct rendering
Pulp and paper
Plastics recycling
Dairy and milk products
Metal plating and finishing
Bakeries
Confectionaries
Food processing
Snack food processing
Beverage
Petroleum and petrochemical refining
Natural gas and petroleum fracking
Biochemical
Personal care products
Competitive Advantage:
1.Complete filtration solutions; Custom designed,manual or automatic back-wash systems,complete with manifolds, valves and controllers.
2.Modularity and flexibility, wide range of vessel types and sizes(diameter16"-96")suitable for many fitration applications.

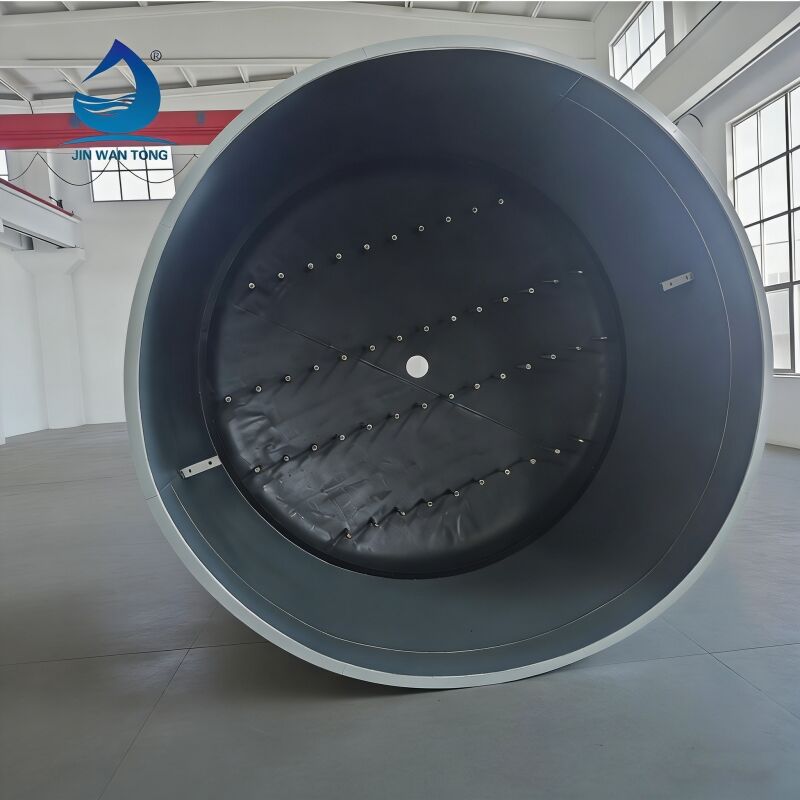

3.High quality corrosion resistance vessels, inside and outside spray coating.High efficiency; Advanced design for perfect water distribution during filter-ing and backwashing.
4.All filters are rated to 1.0 Mpa.The water inlet pressure should be0.2Mpa(Min.).
5.Various connection types, meeting all international standards.
Meets ISO 9001 standards.
FAQ
Q: Where is your factory?A:Changsha city, Hunan province, China
Q: How about the delivery time?
A: Usually 7 days for standard model.
Q:Does the filter operated automatically?
A:Yes. Automatic backwash by differential pressure/ time.
Q:Can you accept OEM?
A: Yes. We could do OEM and put your logo.
Q:Do you have a certification?
A: Yes. We have ISO/ CE certificate and certificate of patent.
Q: Can we choose the color of filter housing?
A: Yes. Blue/green/red or others.
Q:How is the installation of filter?
A: Shipping in skid. Just connect the flanges of water in/out and drain out.
