Compact Lamella Clarifier Unit Optimized for Municipal Sewage Plants Saving Valuable Installation Space
Quick Detail:
Primary clarification of wastewater streams
Backwash water recovery
Industrial water treatment systems
Potable water treatment systems
River water abstraction clarification
Wash water recovery and recirculation systems
Wet scrubber and slaking effluent treatment
- Overview
- Recommended Products
| Place of Origin: | Shandong, China |
| Brand Name: | Jinwantong |
| Model Number: | JWT-LAM |
| Certification: | CE/ISO |
| Minimum Order Quantity: | 1SET |
| Delivery Time: | 30DAYS |
| Payment Terms: | ALL |
Description:
Lamella clarifier or inclined plate settler (IPS) is a type of settler designed to remove particulates from liquids. They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
What is an IPC river water clarifying Inclined plate lamella tube clarifier ?
IPC river water clarifying Inclined plate lamella tube clarifier is one kind of high efficiency solid-liquid separation equipment
for waste water clarification.
Compared with conventional clarifier, treatment capacity of IPC river water clarifying Inclined plate lamella tube clarifier can be 7-10 times higher.
As an experienced ISO9001 CE manufacturer started in year 2006, we provide one-stop services from project design to manufacturing, installation and final commissioning, professional services with cheap factory price for you.
Product Uses
Product uses of IPC river water clarifying Inclined plate lamella tube clarifier :
To remove cr, cu, Fe, Zn ,Ni etc heavy metal ion in electroplate effluent, treated water can reach emission standard.
To reduce turbidity for waste water for coal mine, mineral processing etc., turbidity can be reduced from 500-1500 mg/L to 5mg/L.
Great removing performance in printing and dyeing industry, color removal rate can reach 70%-90%, COD removal rate can reach 50%-70%.
For food industry, letter industry etc., waste water COD removal rate can reach 50%-80%, solids removal rate is above 90%.
For chemical waste water, COD removal rate can be 60%-70%, color removal rate 60%-90%
Strong technical team and strict final inspections ensure excellent quality and long service life of our IPC inclined plate lamella clarifier.

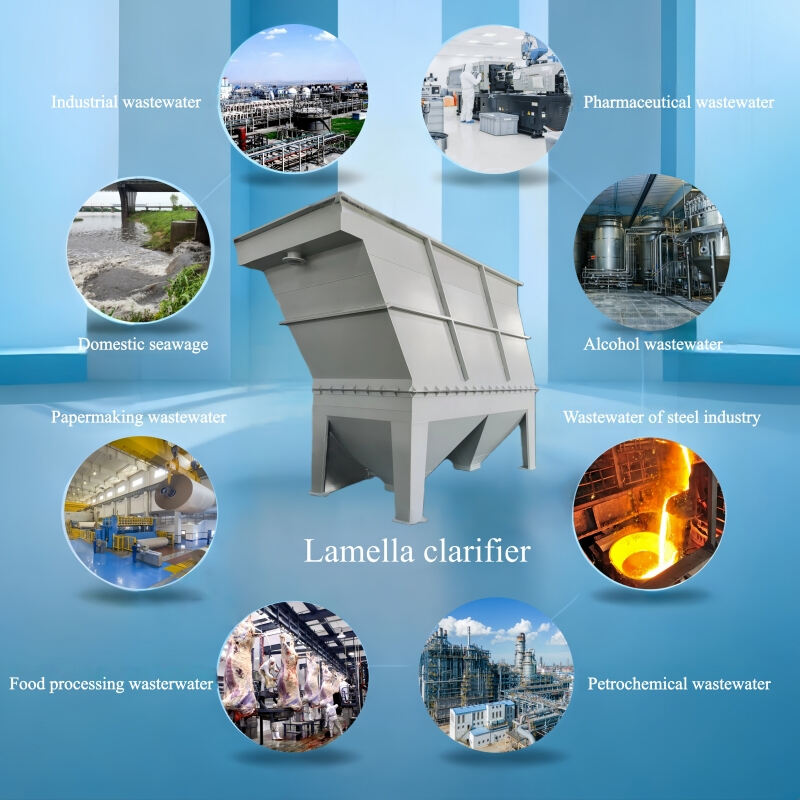

Applications:
Primary clarification of wastewater streams
Backwash water recovery
Industrial water treatment systems
Potable water treatment systems
River water abstraction clarification
Wash water recovery and recirculation systems
Wet scrubber and slaking effluent treatment
Specifications:
| Model | Handling capacity（m3/h) | Dimension(mm) | Table of pipe connection（DN） | Bucket quantity | ||||
| Length | Width | Heigth | Inlet | Outlet | Sludge outlet | |||
| LXB-3 | 3 | 2200 | 1200 | 2300 | 40 | 50 | 80 | 1 |
| LXB-5 | 5 | 2900 | 1600 | 2800 | 40 | 50 | 80 | 1 |
| LXB-10 | 10 | 4900 | 1700 | 3200 | 65 | 100 | 80 | 2 |
| LXB-20 | 20 | 5900 | 2200 | 3750 | 100 | 150 | 100 | 2 |
| LXB-30 | 30 | 7500 | 2200 | 3750 | 100 | 150 | 100 | 3 |
| LXB-50 | 50 | 9500 | 2200 | 3750 | 125 | 200 | 100 | 4 |
| LXB-70 | 70 | 11500 | 2200 | 3750 | 125 | 200 | 100 | 5 |
| LXB-80 | 80 | 10500 | 3000 | 3800 | 150 | 250 | 150 | 3 |
| LXB-100 | 100 | 11500 | 3000 | 3800 | 200 | 250 | 150 | 4 |
Competitive Advantage:
1. Lamella clarifiers can be used in a range of industries including mining and metal finishing,as well as used to treat groundwater industrial process water and backwash from sand filters.Lamella clarifiers are ideal for applications where the solids loading is variable and solids sizing is fine and are more common than conventional clarifiers at many industrial sites due to their smaller footprint.
2. Simple structure,without wearing parts,wear well,decrease maintenance
Steady operation,easy operation
Small power,save energy
Small occupy area, low investment, high efficient
Short retention time, high sediment efficiency, no sludge backflow.
3. The inclined plate sedimentation tank adopts the principle of "shallow layer precipitation" to shorten the sedimentation distance of particles, thus shortening the sedimentation time, and increasing the sedimentation area of the sedimentation tank, thus improving the treatment efficiency.
FAQ
Q1:Are you a factory or trading company?
A1:We are a real manufacturer who can offer you both the most competitive price and top quality products.
Q2:Where is your factory located? How can I visit there?
A2:Our factory is located in Qingdao City Shandong Province, All our clients, from home or abroad, are warmly welcome to visit us!
Q3:Can you put my company brand (logo) on the products?
A3:Yes,we support OEM/ODM service,the customize process as follows:
1.Customers put forward personalized customization requirements.
2.Our engineer draw the design draft.
3.Customer confirm the design draft.
4.Factory start to produce shipment.
Q4:How to select right model?
A4:You can tell us what you need, and we can help you choose the Model.Basic informations as follows:
Wastewater type : Industry wastewater, Domestic wastewater, food wastewater or others)
Capacity:m³/Day or m³/Hour?
Raw water quality: SS, Oil & Grease &Fat & FOG, PH,BOD,COD content?
Output water quality standard,for discharge or reuse?
Local voltage and frequency?
Q5: What is your MOQ?
A5:Normally, our MOQ is 1 set.
Q6:What is the payment term ?
A6:TT and L/C are acceptable and TT will be more appreciated, 30% deposit, 70% balance payment before shipment.
Q7: We haven't imported before, can you ship the goods to our warehouse?
A7:Yes. Although our normal trade term is EXW, FOB, CIF, we can also arrange logistics to your warehouse.
Q8:What is the delivery time of your factory?
A8:5-10 days for general series products, meanwhile, batches products & customized products would need 15-30 days based on different situations.Contact us for the exact time.
