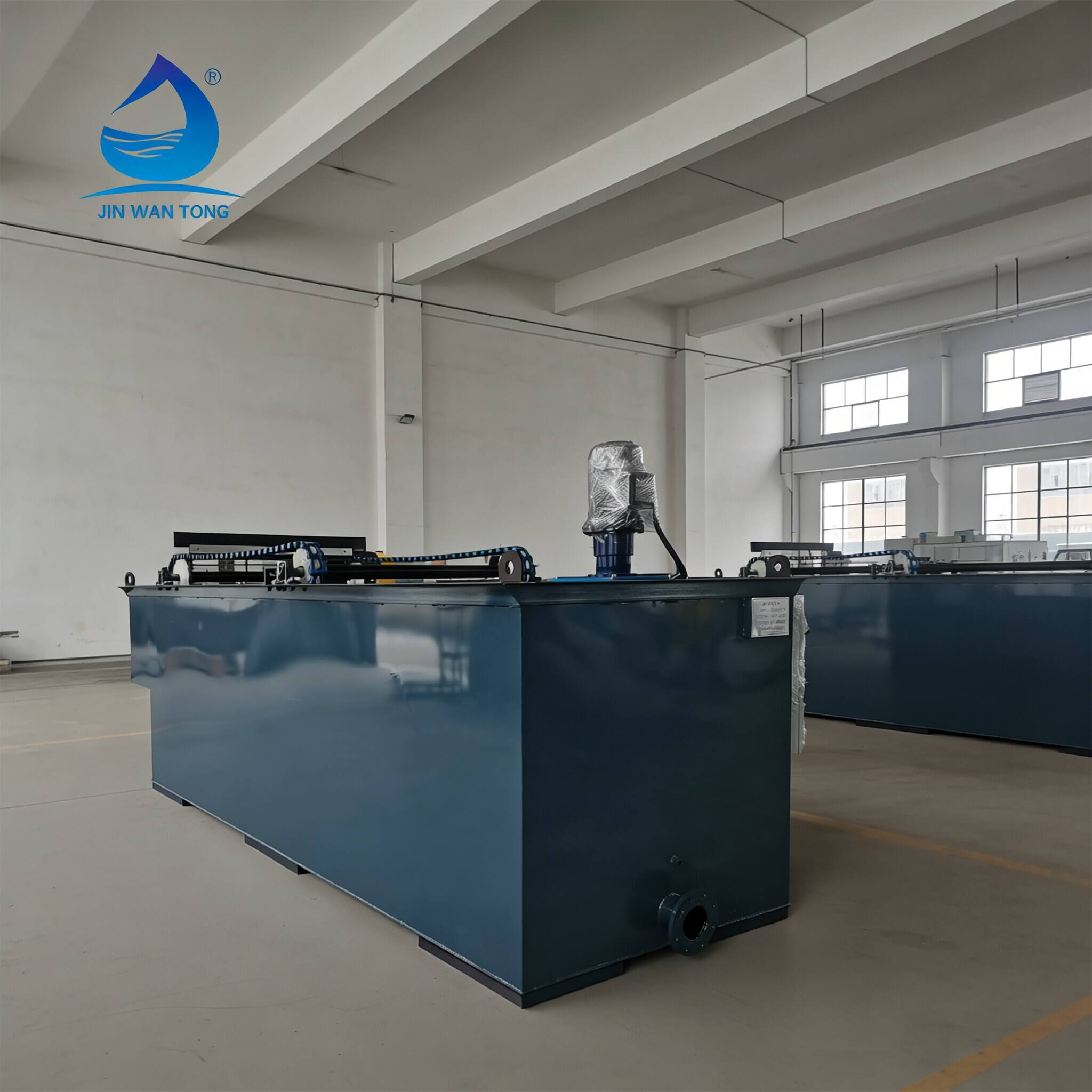

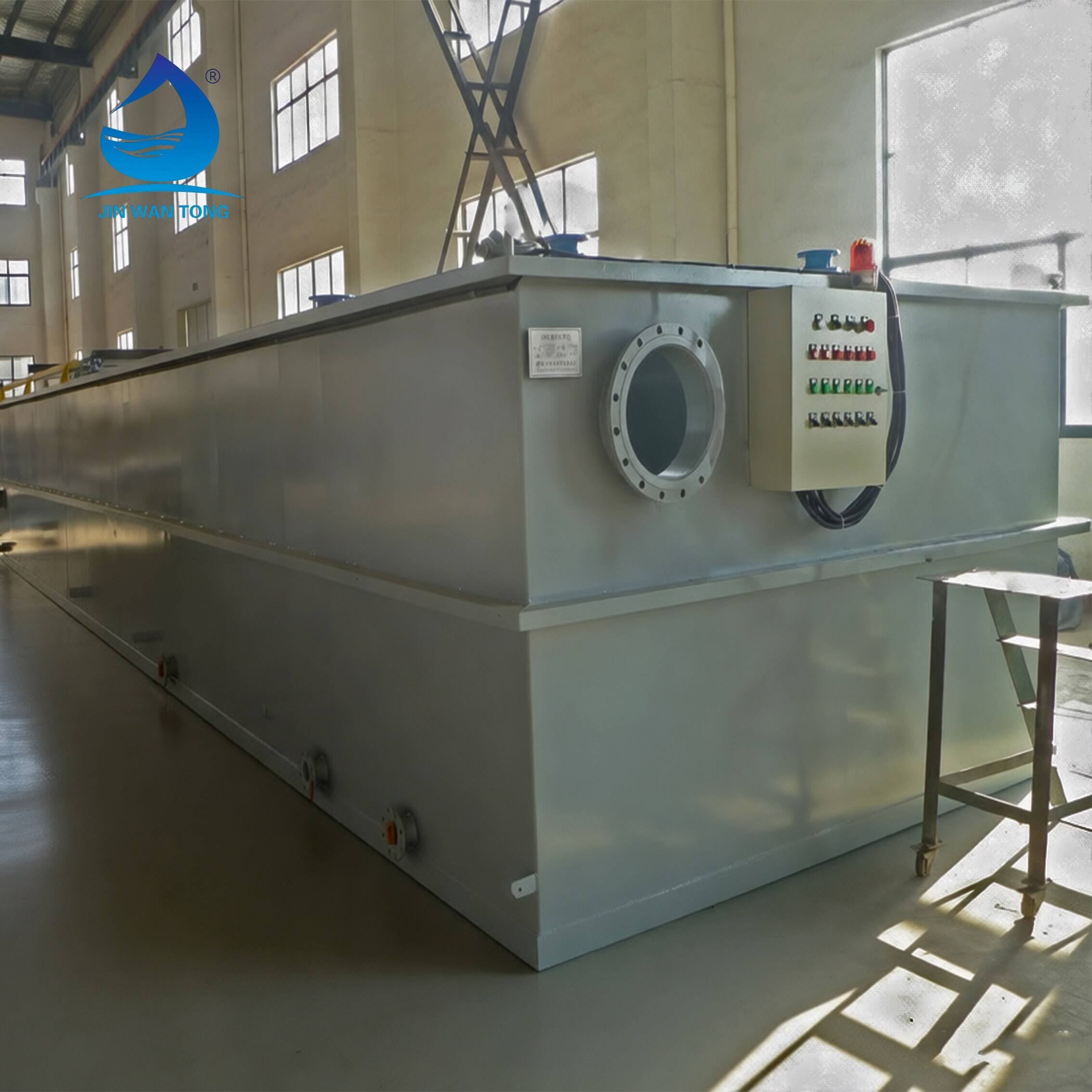

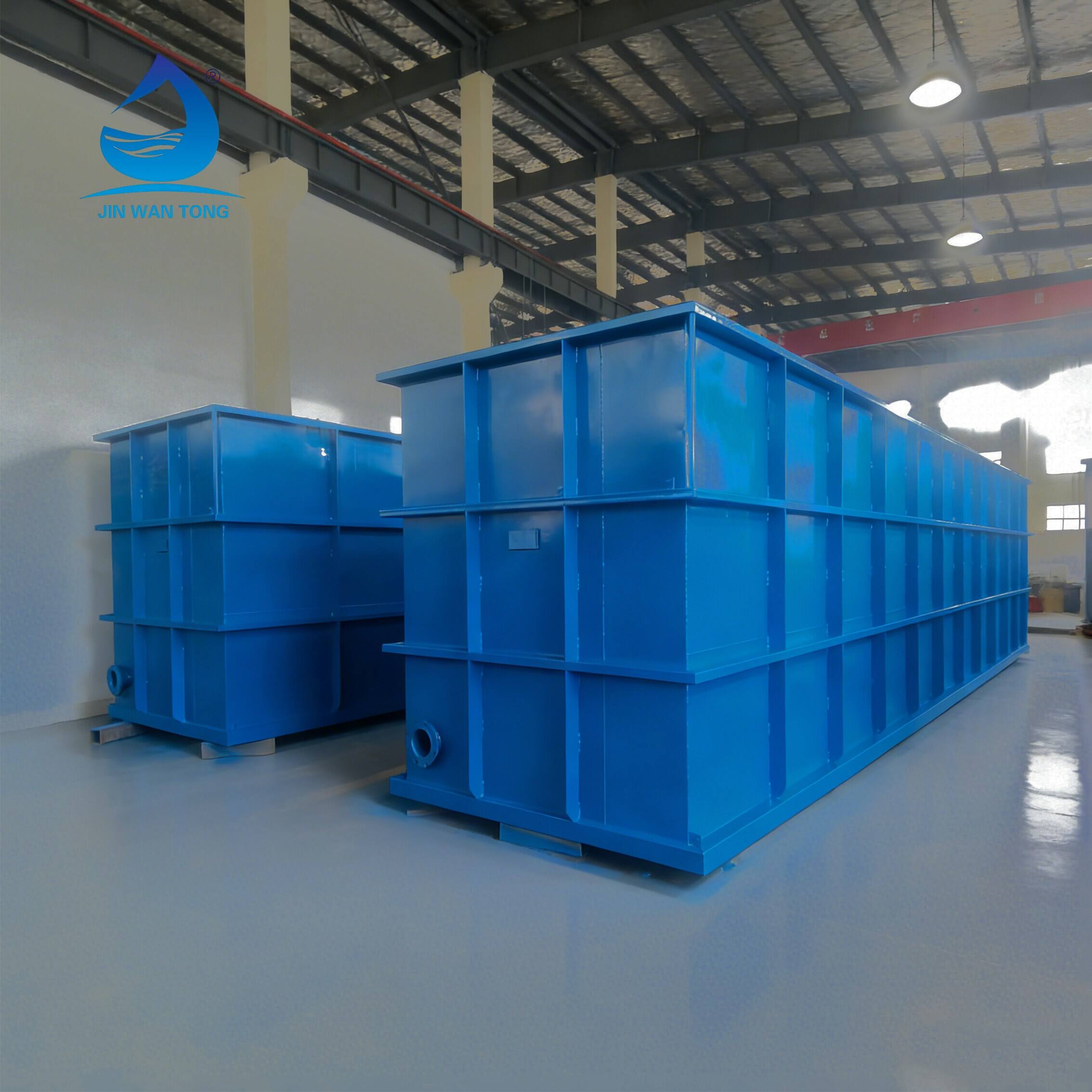

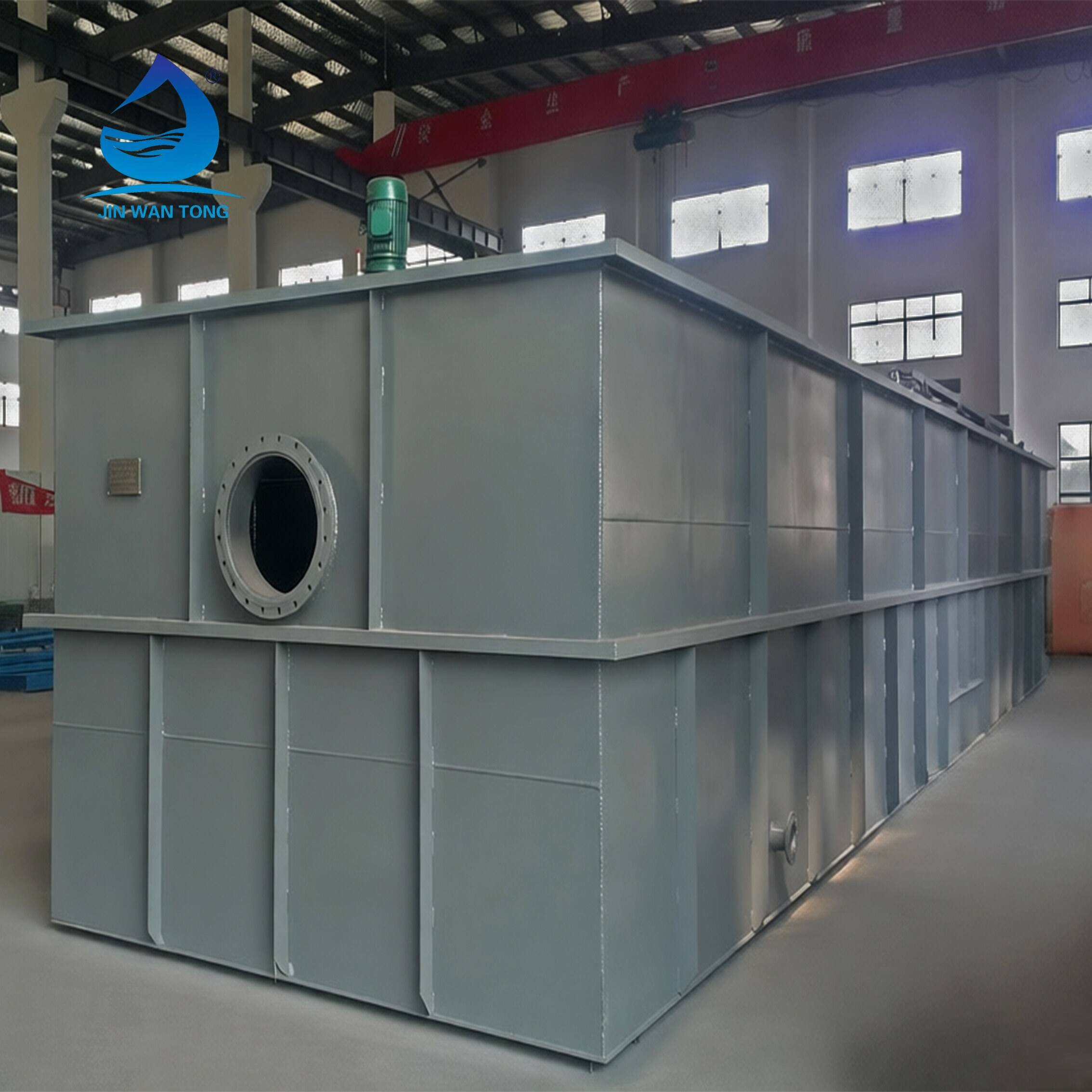

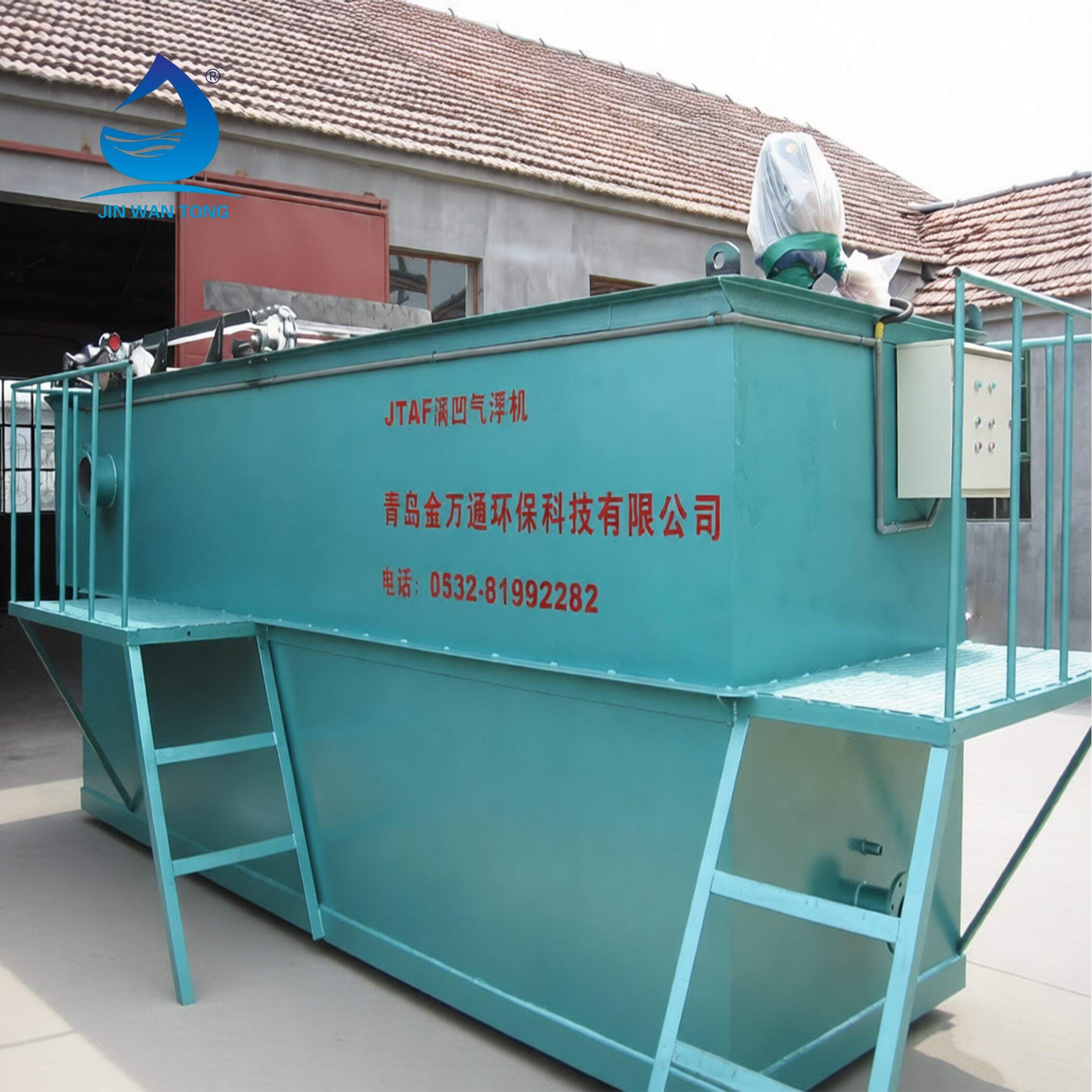

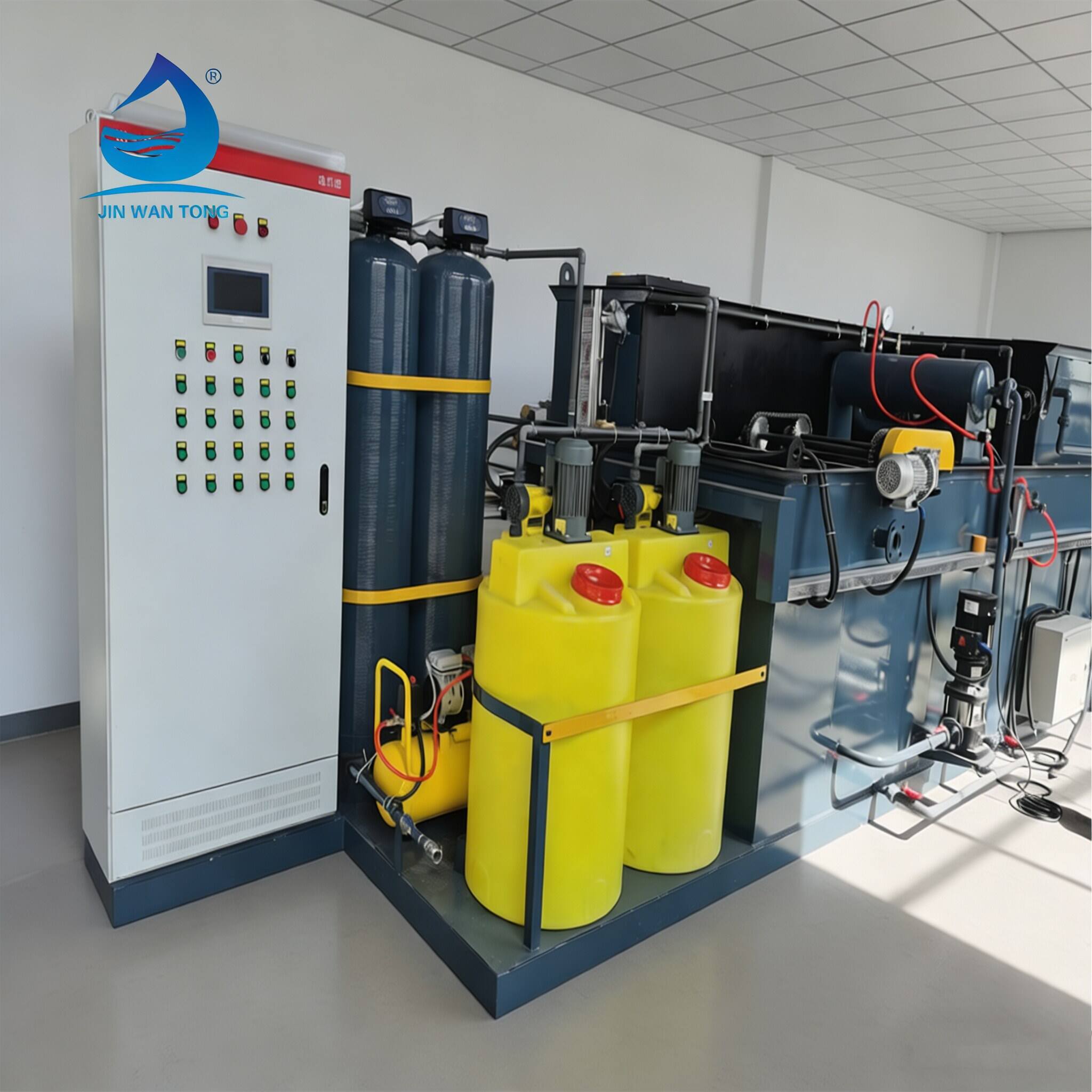

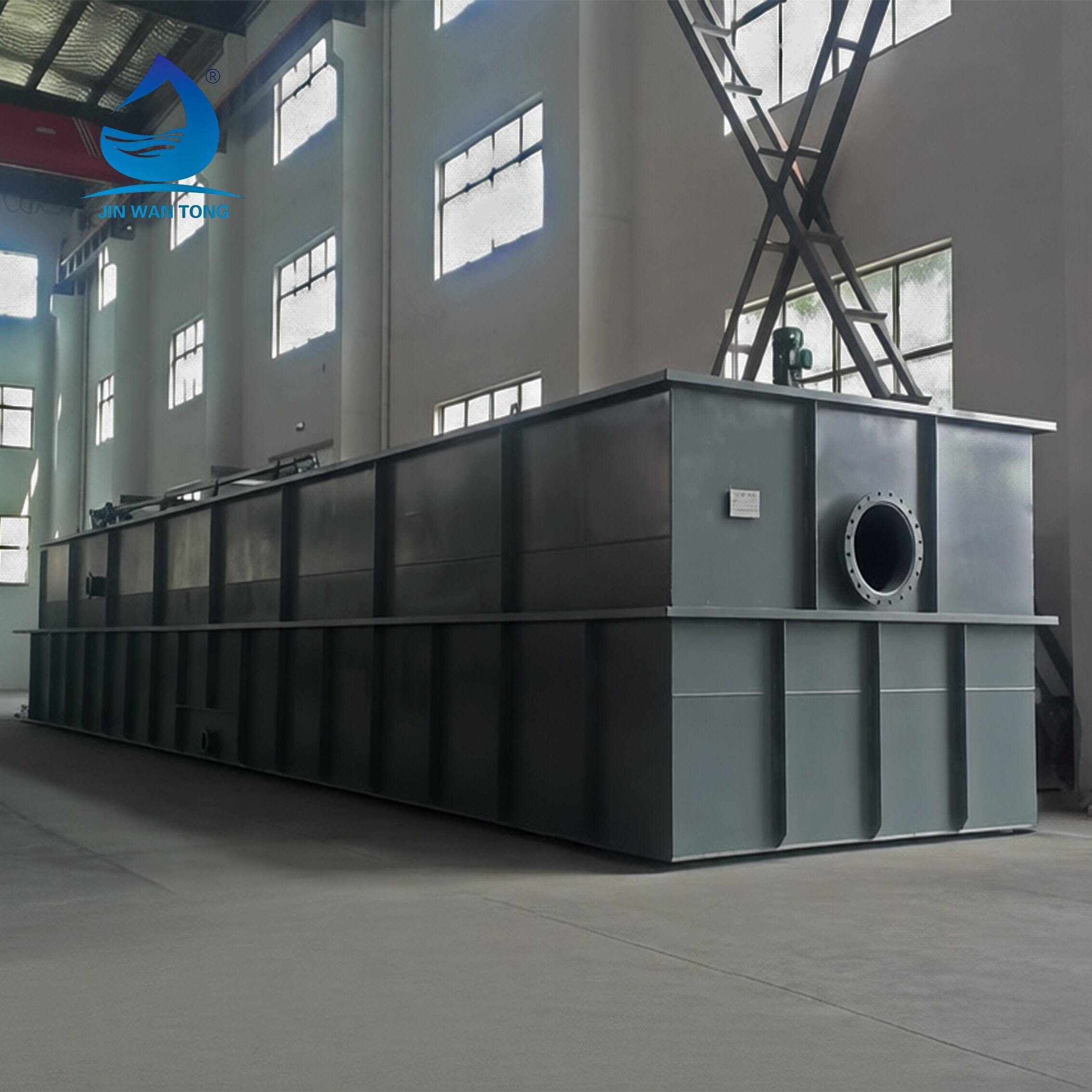

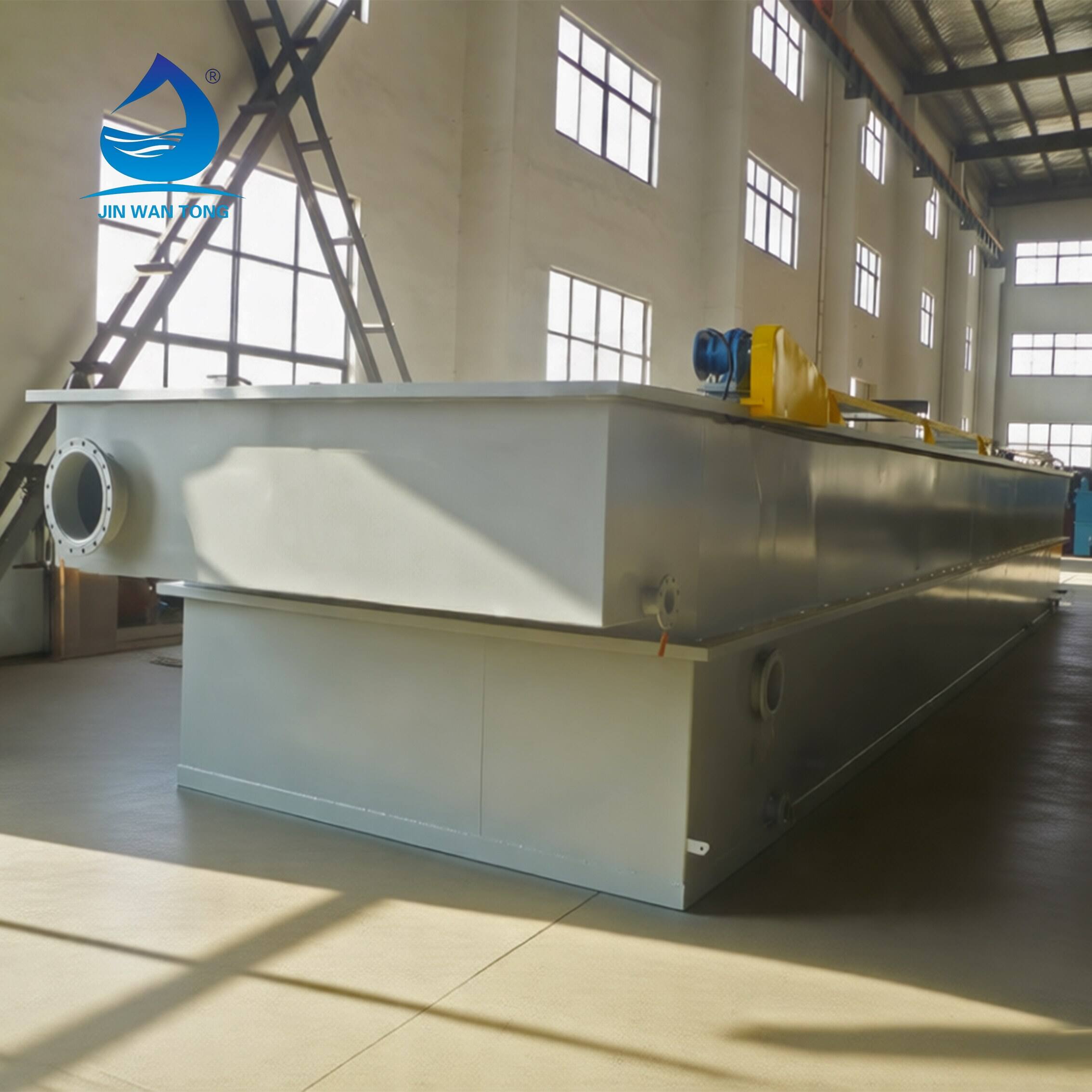

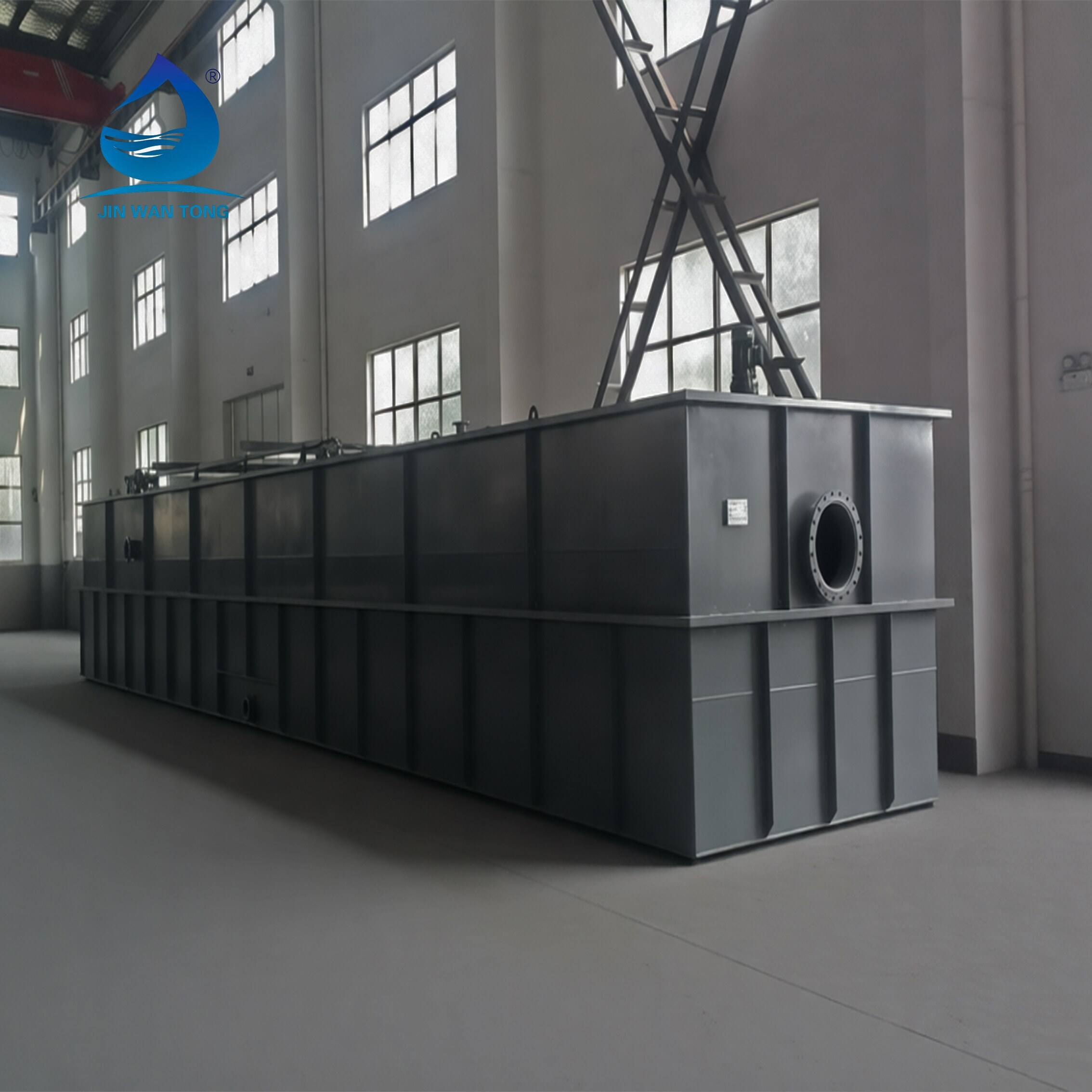

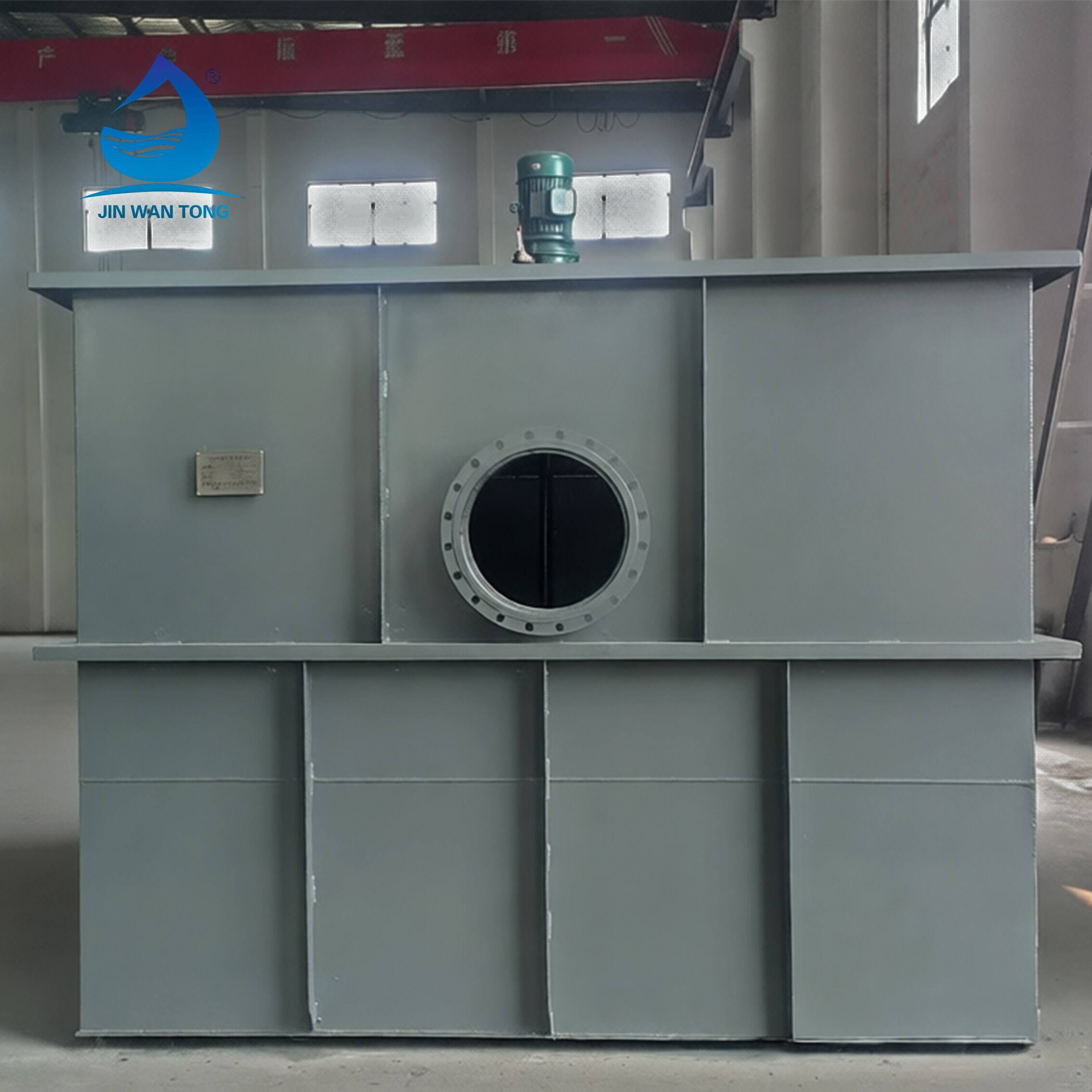

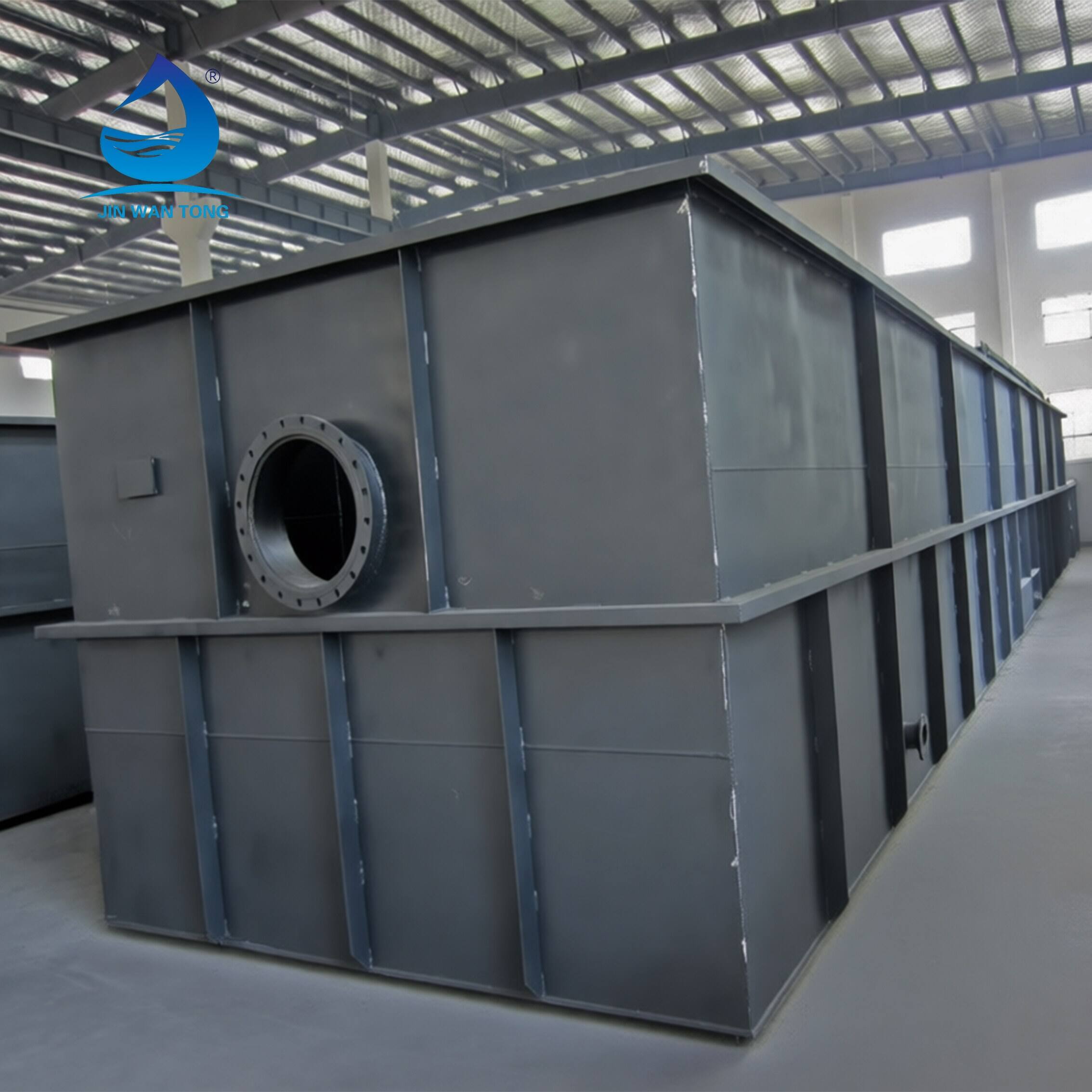

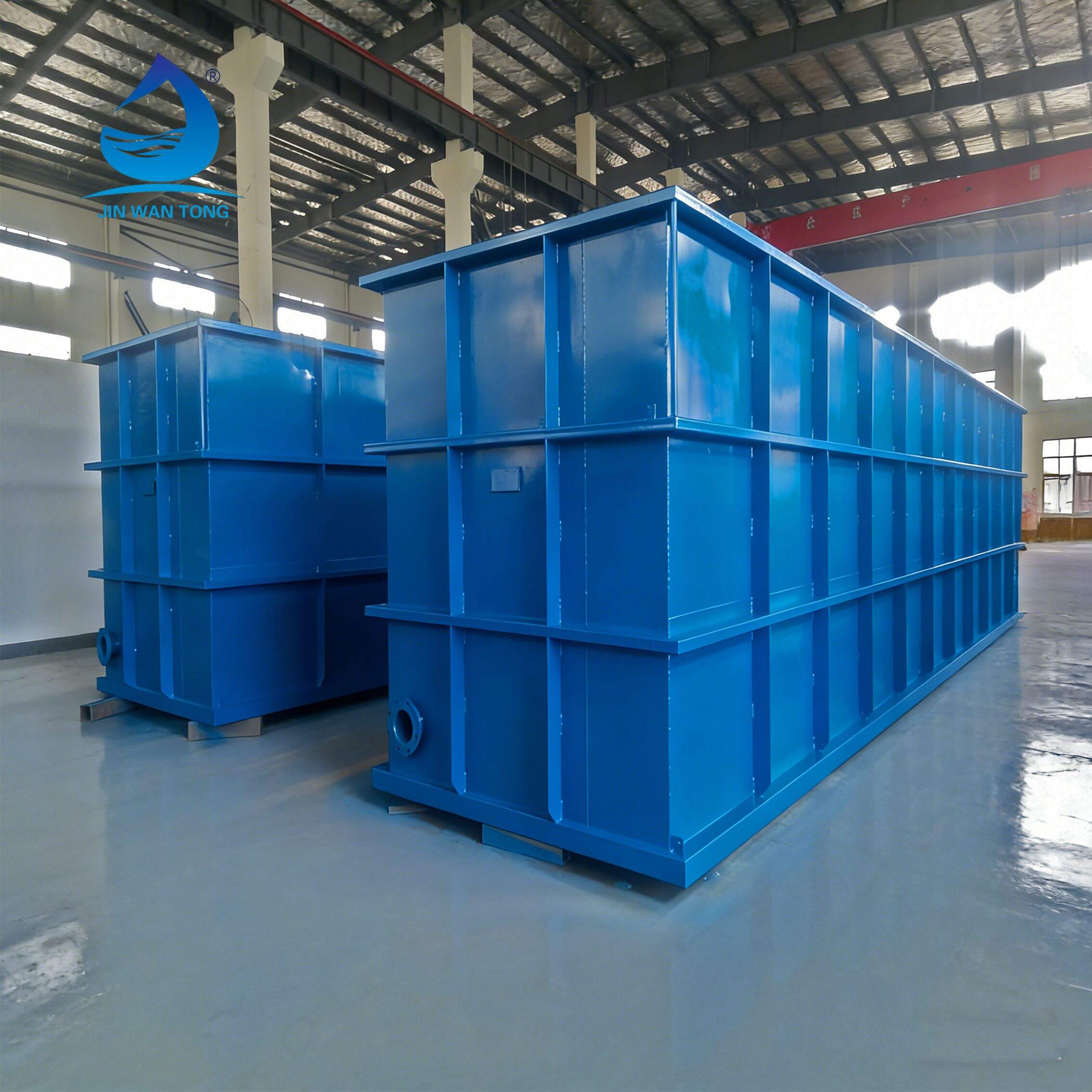

Concave Air Flotation Machine
Quick Detail：
Air Flotation Machine,Concave Air Flotation Machine
oil water seperate，Wastewater Treatment
- Overview
- Recommended Products
Description:
1.Twenty-year-old factory, trustworthy
Jinwantong set up a factory in 2006 and passed the ISO9001-2015 quality system certification. Air flotation machine is Jinwantong's flagship product, which has been widely used in hundreds of projects at home and abroad, and its quality is trustworthy.
2.Patent dissolved gas system
The dissolved air system of Jinwantong aeration flotation machine is a patented product after 20 years' practice. The internal structure is optimized, and it only needs to be debugged once, and then it can be directly operated after shutdown and restart, without secondary debugging. Convenient installation and simple debugging, even non-professionals can easily complete air flotation debugging under the remote guidance of our company.
3.National standard steel, quality guaranteed.
The steel used in Jinwantong equipment comes from famous manufacturers such as Baosteel and WISCO, and the thickness and quality of steel are guaranteed.
4.Well-known brand components, reliable quality and long life.
Flocculation stirring motor, reflux pump, slag scraper and air compressor are all well-known brands in the industry. Our factory was established in 2006. After 20 years of practice, the selected components have reliable quality, long service life and low failure rate. However, in order to reduce the cost and gain the price advantage, many small factories use inferior parts, and ignore the goods after receiving the money, which will bring many subsequent troubles to the end users.
5.Standard air compressor with low power consumption and long service life.
The air compressor used in Jinwantong Ventilation Flotation is a complete standard air compressor, including air storage tanks. The compressed air output by the air compressor is first stored in the air storage tank and then enters the air flotation machine. When the air storage tank is full, the main engine of the air compressor stops working, and only the compressed air in the air storage tank is used to continuously supply air to the air flotation, which makes the main engine of the air compressor run intermittently, with low power consumption and long service life. However, many small manufacturers use a simplified version of the air compressor to reduce the cost-only the main engine, no air storage tank, the air compressor needs to run continuously, with short life and high power consumption.
6.Gear reducer, low noise, small vibration and long service life.
Jinwantong Flocculation Mixer uses gear reducer, which is more expensive than cycloidal pin reducer, but it has high transmission efficiency, stable operation, small vibration and low noise. But many small factories use cycloidal needle reducers.
7.Quick after-sales response, which can realize on-site debugging at home and abroad.
Jinwantong Concave Air Flotation Machine is sold at home and abroad, and it can respond within 24 hours at home and abroad. Engineers can go to the customer's site (including abroad) for installation and debugging technical guidance (the cost is calculated separately).
Applications:
Car washing water,Poultry processing, Meat processing ,Laundries and textiles ,Egg processing ,Byproduct rendering, Pulp and paper, Plastics recycling, Dairy and milk products, Metal plating and finishing, Bakeries ,Confectionaries, Food processing,Fish processing,Dyeing factory,Snack food processing, Beverage, Petroleum andpetrochemical refining ,Natural gas andpetroleum,fracking ,Biochemical ,Personal care products,Domestic sewage,hotel sewage etc.
Specifications:
| Model | Handling capacity（m3/h) | Dimension(mm) | Numbers of aerator | Gross power | ||
| Length | Width | Heigth | ||||
| JTAF-5 | 5 | 2500 | 1000 | 1200 | 1 | 1.84 |
| JTAF-10 | 10 | 3000 | 1200 | 1200 | 1 | 1.84 |
| JTAF-20 | 20 | 4500 | 1200 | 1200 | 1 | 1.84 |
| JTAF-30 | 30 | 4500 | 1500 | 1600 | 1 | 2.94 |
| JTAF-50 | 50 | 5300 | 1800 | 1800 | 1 | 2.94 |
| JTAF-75 | 75 | 6500 | 2400 | 1800 | 2 | 2.94 |
| JTAF-100 | 100 | 7500 | 2400 | 1800 | 2 | 2.94 |
| JTAF-150 | 150 | 9500 | 2600 | 2000 | 2 | 5.14 |
| JTAF-200 | 200 | 12500 | 2600 | 2000 | 3 | 5.14 |
Competitive Advantage:
FAQ
Q1: How to handle insufficient bubble output during the operation of the Cavitation Air Flotation Machine?
A1: First, check if the aerator impeller is blocked or worn, clean up debris and replace damaged parts promptly; then verify if the air intake volume meets the standard and adjust the air intake valve to an appropriate opening; meanwhile, inspect the surfactant content in sewage and reduce the concentration if excessive.
Q2: What causes abnormal noise during the operation of the equipment?
A2: The main causes include lack of oil or damage to bearings, friction between the impeller and the shell, loose fixing bolts of the base, and additionally, air entering the water inlet pipeline may also lead to abnormal noise.

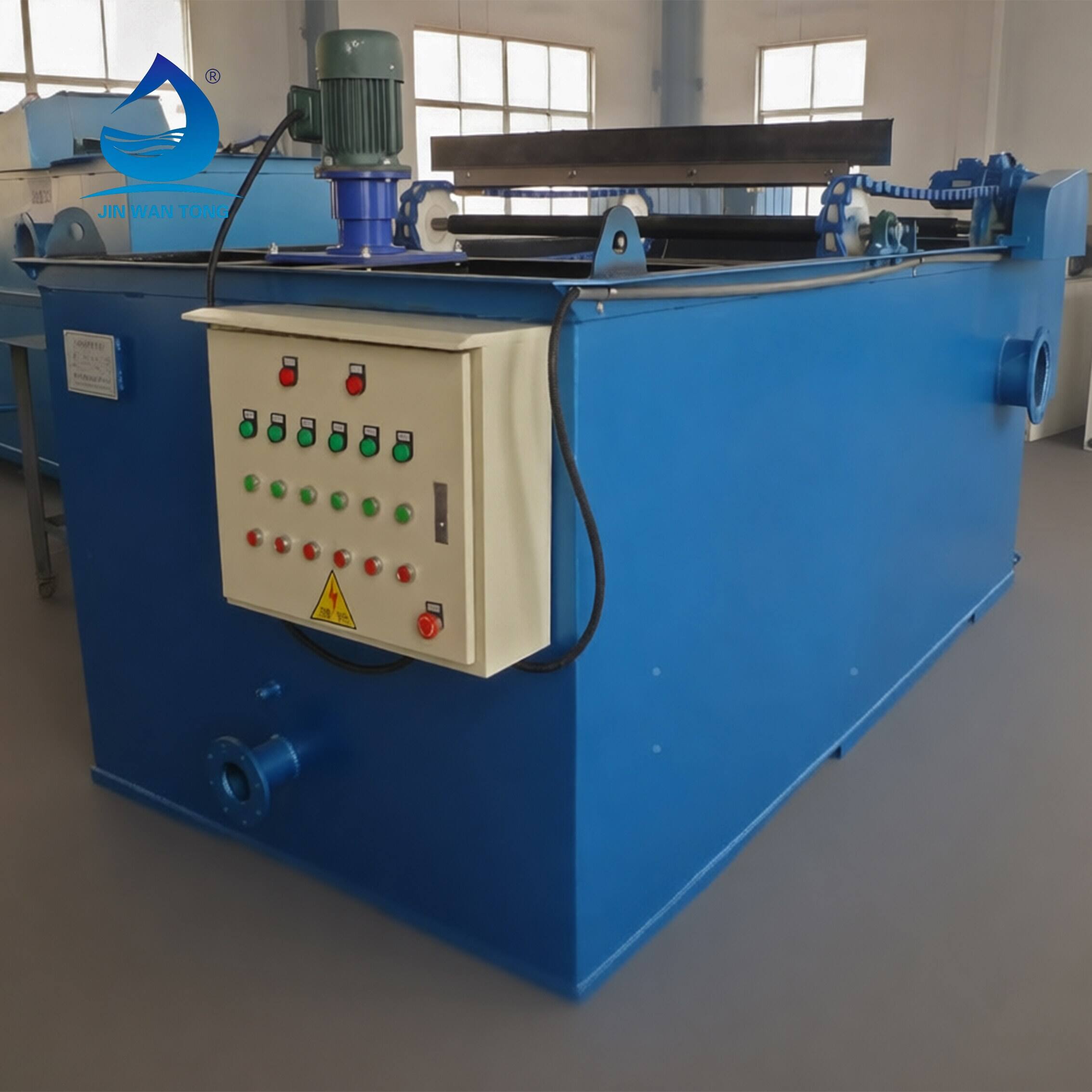

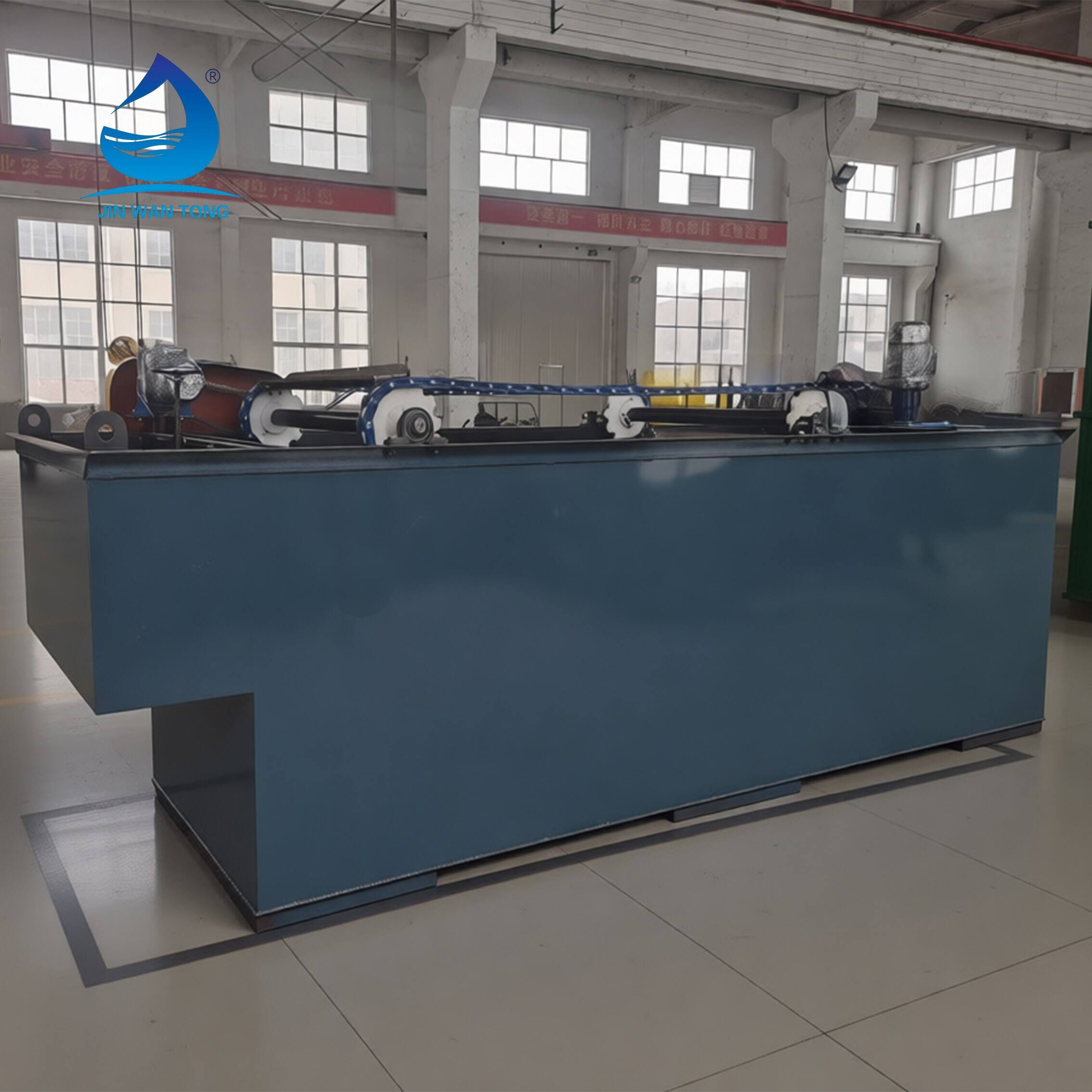

Q3: How to troubleshoot when the slag scraper of the Cavitation Air Flotation Machine fails to work?
A3: First, check if the power supply is normal and if the motor is faulty; then check if the slag scraper chain is loose, broken or jammed, adjust the tightness or replace accessories in a timely manner; finally, confirm if the control circuit and sensors are abnormal.
Q4: What are the common factors leading to unqualified effluent quality after treatment?
A4: Common factors are insufficient residence time, poor air flotation and dissolved air effect, improper dosing amount. In addition, excessive fluctuation of influent water quality and failure to clean up equipment slag in time will also affect the effluent effect.
Q5: How to regularly maintain the Cavitation Air Flotation Machine to extend its service life?
A5: Clean up debris in the aerator and pipelines weekly, check bearing lubrication and replenish lubricating oil monthly, perform anti-rust treatment on the slag scraper chain quarterly, and conduct a comprehensive overhaul of core components such as motors and water pumps annually.
