Stainless Steel 304 PLC Controlled Mechanical Bar Screen Grille for Wastewater Treatment
Quick Detail:
Mechanical Grille /Bar Screen
01. Run automatically
02. Low power consumption
03. Overload safety protection
04. No noise, continuous and stable
05. Good corrosion resistance, little spare part
06. Strong self-purification ability without backwash water
- Overview
- Recommended Products
Description:
Wastewater Treatment Automatic Solid Liquid Separation Grille Machine Rotary Mechanical Bar Screen For Sewage Treatment Mill
-Water Treatment Mechanical Grille Wastewater Treatment Mechanical Bar Screen.
Mechanical Bar Screen Grille (Circulation Toothed Harrow Mud Cleaner) is an important equipment for wastewater pre-treatment which can continuously and automatically intercept and remove various shapes of debris in fluid. It is used for separating the bigger matters in waste water treatment system; And as the first separating equipment at the water inlet; and slaughtering house, printing waste water, dyeing waste water, paper making waste water, domestic waste water, animal feeding waste water. It can be applied for drainage pumping plant, urban wastewater, industry wastewater, and coarse or fine screen.
Multi-Rake Bar Screen is an efficient, proven screen technology, for removal of inorganic solids that can be harmful to downstream equipment in municipal and industrial applications. The heavy duty design provides durability and long life in the most severe conditions. High removal efficiency and low headloss is achieved with multiple rakes cleaning the screen and rake teeth penetrating the bar openings to positively remove captured material.
The benefit of continuous cleaning with multiple rakes is rapid debris removal for applications with a high screenings load at treatment plant headworks, pump stations, or combined sewer systems.
Advantages ：All stainless steel construction to resist corrosion.
Durable stainless steel roller chain.
Replaceable rake teeth. Weather protection system.
Maintenance free lower chain guide or optional lower sprocket assembly.
Optional removable covers for odor control.
Optional explosion-proof design

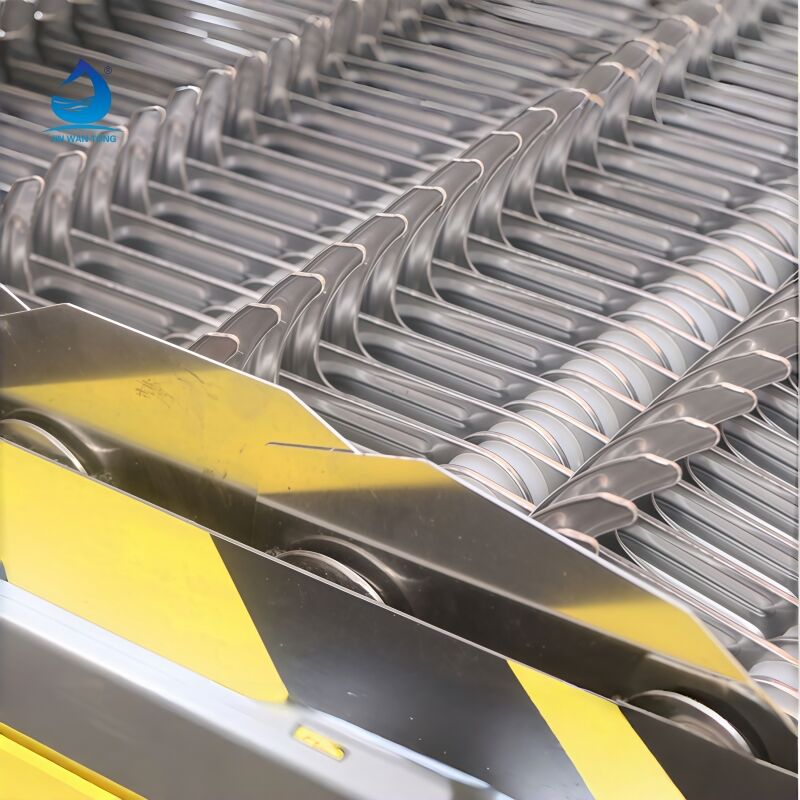

A set of closed rake teeth chains are formed by staggering and paralleling many identical rake teeth parts. Driven by the motor and reducer, the continuous top-down circular motion is carried out through a set of sheaves and chains to achieve the purpose of continuous fishing the solid dirt in water. When the rake teeth chain runs to the upper part and the back of the equipment, due to the guiding effect of the sprocket and the curved rail, the parallel rake teeth row can be dislocated, so that the solid dirt falls into the slag groove by its own weight.
Applications:
01. Sewage / wastewater treatment mill
02. Slaughtering house
03. Dyeing wastewater treatment
04. Paper making wastewater treatment
05. Domestic sewage treatment 06. Other industrial sewage treatment
Competitive Advantage:
01. Run automatically
02. Low power consumption
03. Overload safety protection
04. No noise, continuous and stable
05. Good corrosion resistance, little spare part
06. Strong self-purification ability without backwash water
FAQ
01. How to buy your idea products?
A: You can provide us your water channel width and depth and reject unloading height, water quality, flow rate. i can suggest the bar clearance and material quality and power.
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard exporting wood package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
05. How to keep your equipment from corrosion?
A: We use the stainless steel 304, and thickened rakes.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending. And QC is necessary, also.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
