Description:
Working Processes
Mud-water separation equipment is mainly used in various water treatment processes such as sedimentation tanks sludge tanks, etc., is responsible for a large area of bottom sludge scraping collection and discharge. It is the pre-treatment equipment of sludge dewatering equipment, which effectively collects and separates solid or foam impurities in water.

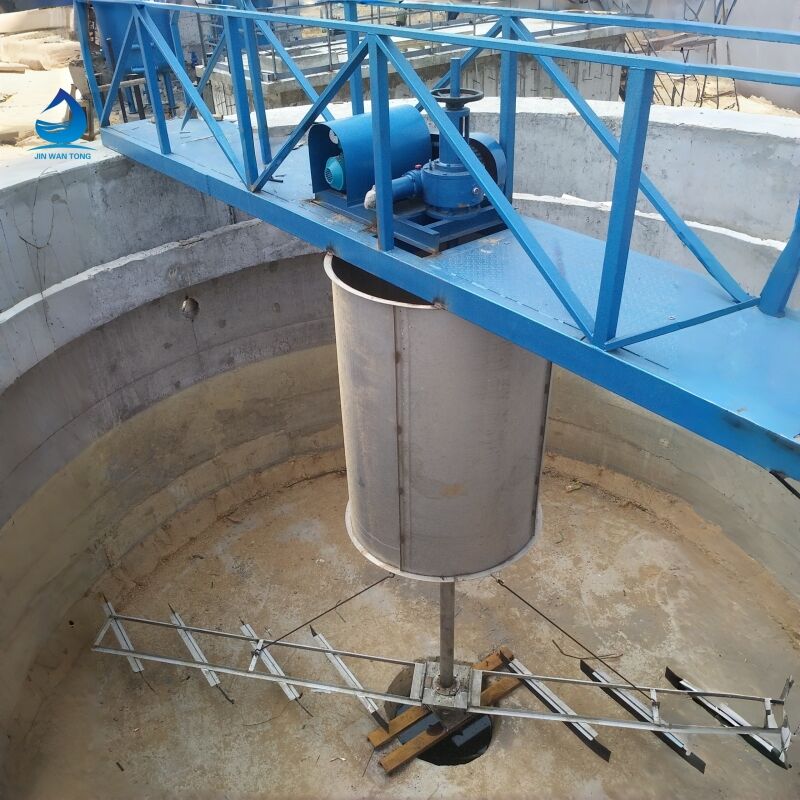

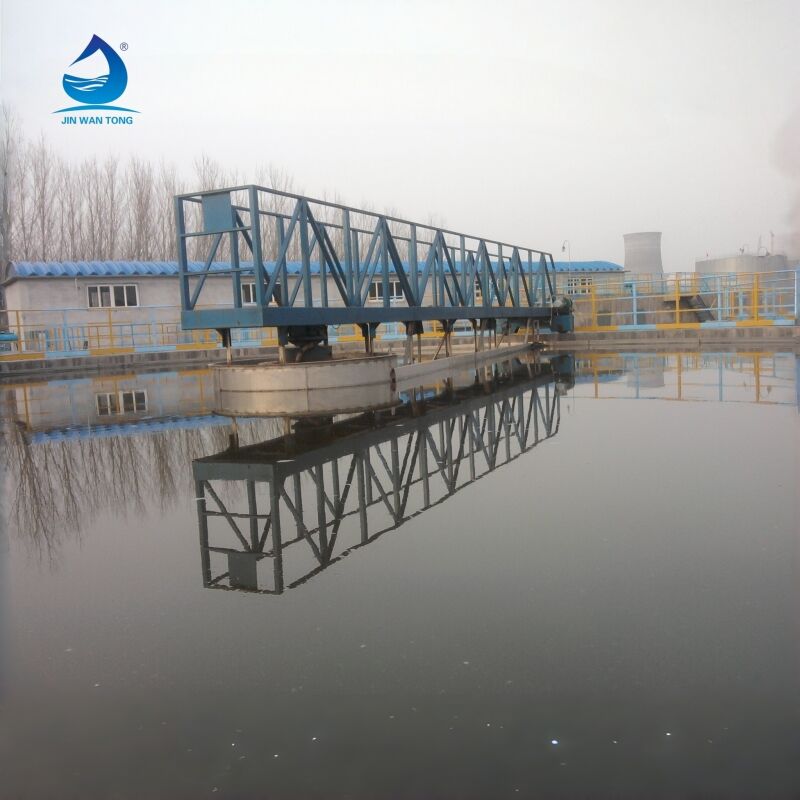

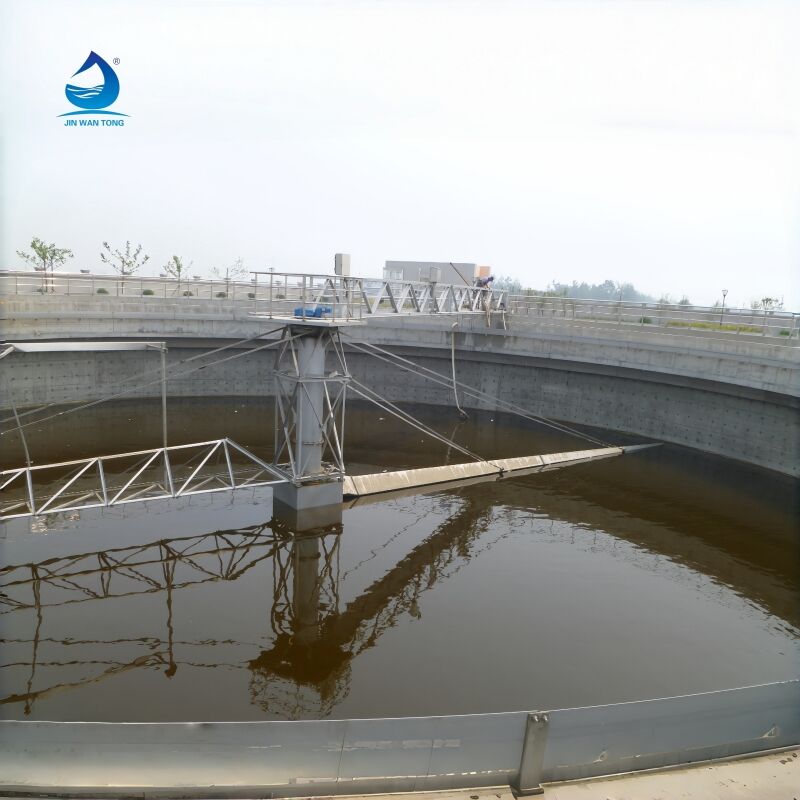

Center drive mud scraper is mainly composed of deceleration drive machine, drive vertical shaft, scraper arm, underwater bearing and mud collection tank scraper, etc. The load of the whole mud scraper is acted in the center of the working bridge across the pool diameter. Raw water flows to the overflow tank around the pool after water distribution through the water distributor. With the reduction of flow rate, the suspended matter in the water settles at the bottom of the pool, and the clarified liquid is discharged out of the pool through the outlet tank of the overflow weir plate. Through the transmission of deceleration drive and suspended components, the sludge is scraped and collected by scraper to the center sludge collection tank, and discharged out of the pool by water pressure or pump. Adopting center water inlet and sludge discharge, peripheral drainage, to ensure uniform water flow. Self-absorbing sludge discharge by liquid level difference, with scum scraping and collecting exclusion device and overload protection device. According to user requirements, the control system can be networked with microcomputer.

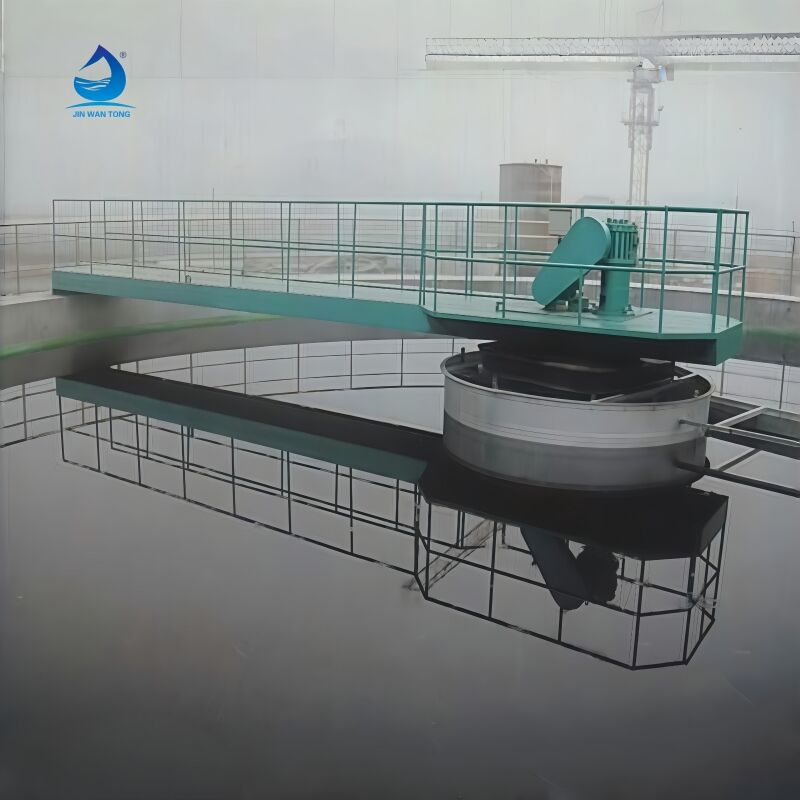

1. Central drive thickener Structure: The transmission device is located at the center of the tank, driving the vertical shaft to rotate the truss and scraper slowly. Features: Stable structure, reliable operation, and it is the traditional and most common type. Suitable for pools with medium diameters (usually <50 meters). Classification: Rake lifting type: It features an automatic rake lifting function. When the sludge at the bottom is too thick or the torque is too high, the scraper can be automatically lifted to prevent equipment damage, making it very practical.
2. Peripheral drive thickener Structure: The transmission device is installed on the rollers around the pool body. The motor drives the rollers to move along the track around the pool body, thereby driving the scraper arm to rotate. Features: Suitable for large and super-large pools (with diameters up to 100 meters or more), featuring a more simplified structure that saves steel consumption for central pillars.
3. High-efficiency thickener Structure: This is a product of modern technology, which has undergone revolutionary improvements based on traditional thickeners. The core of it is a specialized flocculation feeding well and an optimally designed sludge scraping system. Working principle: The material and flocculant undergo thorough and gentle mixing in the feeding well, forming optimal flocs. Once they enter the tank, they begin to settle rapidly.
Features
1. Working bridge with steel truss structure, simple, elegant and lightweight, also can be madeof concrete platform.
2. Simple installation & maintenance and low operating cost
3. High Energy-efficient drives with over torque protection device, or can be equipped with
torsiometer as needed.
4. Material options: carbon steel with coating(epoxy,FRP or rubber), stainless steel (SUS304 orSUS316L).
5. Optional units: rake unit, skimming device, V type outlet weir.

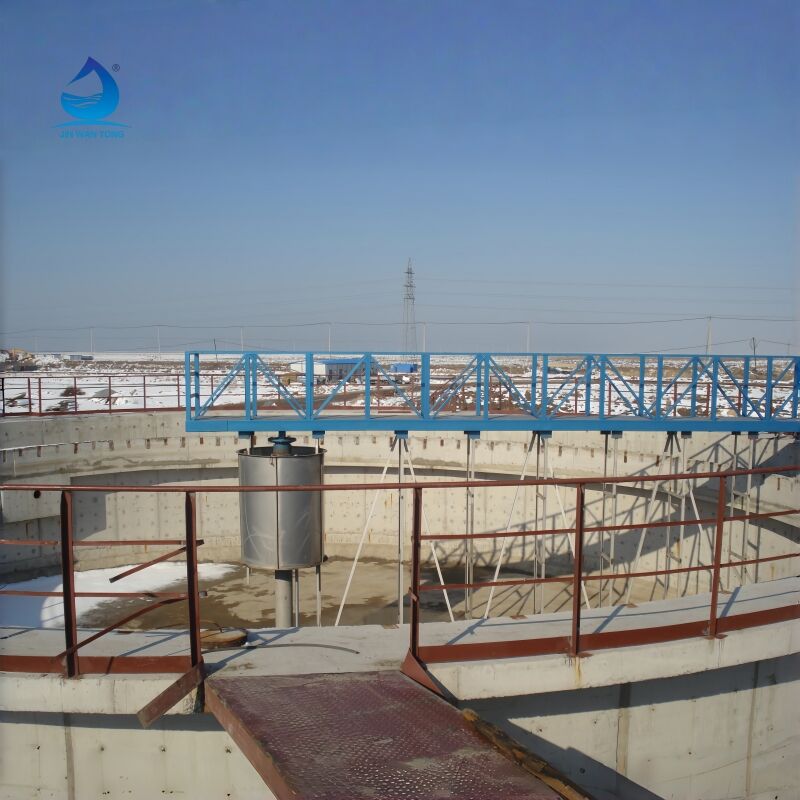

Construction and mechanism

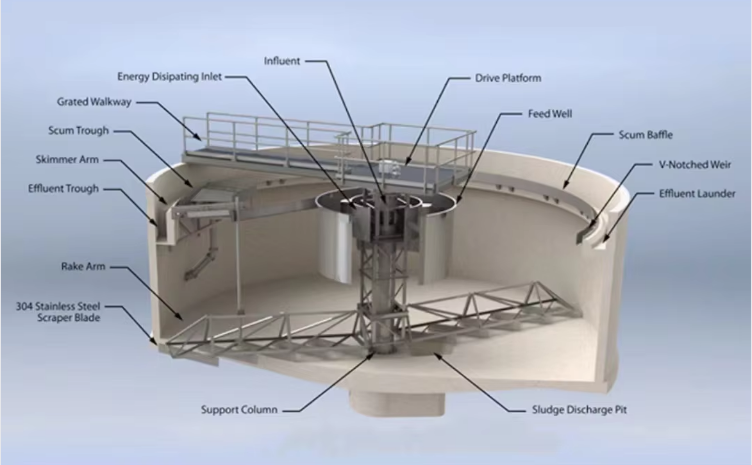

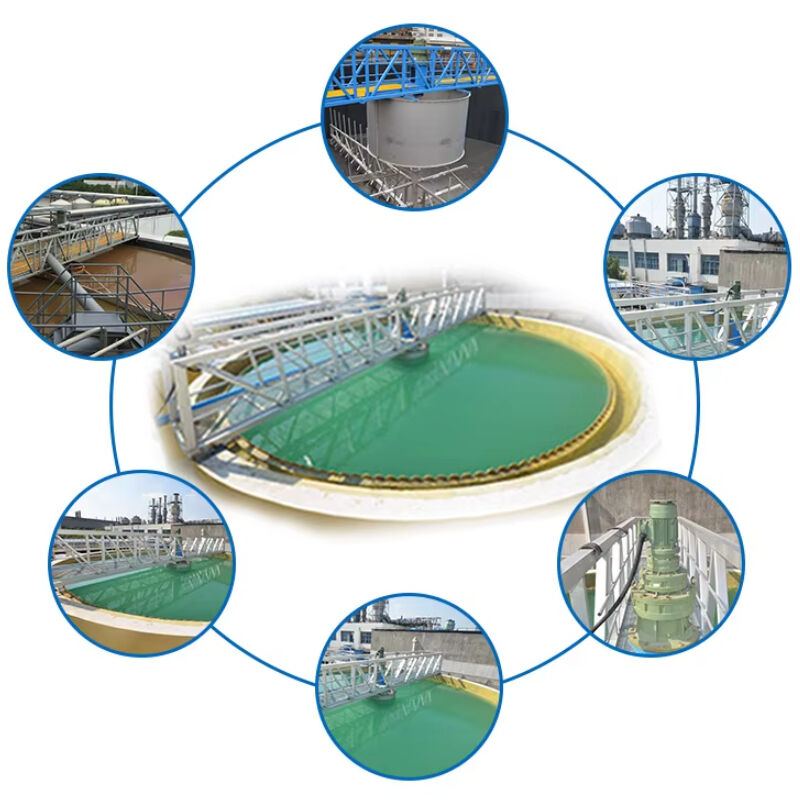

Components: working bridge, small scraper board, steady flow tube, scraping truss, overflowdevice, centersupport, drive unit, skimming scraper and electric control panel.
Mechanism
Scraping arm is rotated around the central axis of the clarifier by central drive units, a set ofsmallscraper which installed in the scraping arm scraping the bottom sludge into the centersludge collection pit.Meanwhile, the scum on the surface enters into the scum thickening area byskimmer and weir, and dischargedby scum rake unit.
Drive
cycloid reducer with high transmission efficiency, long life, and low maintenance cost.
Applications:

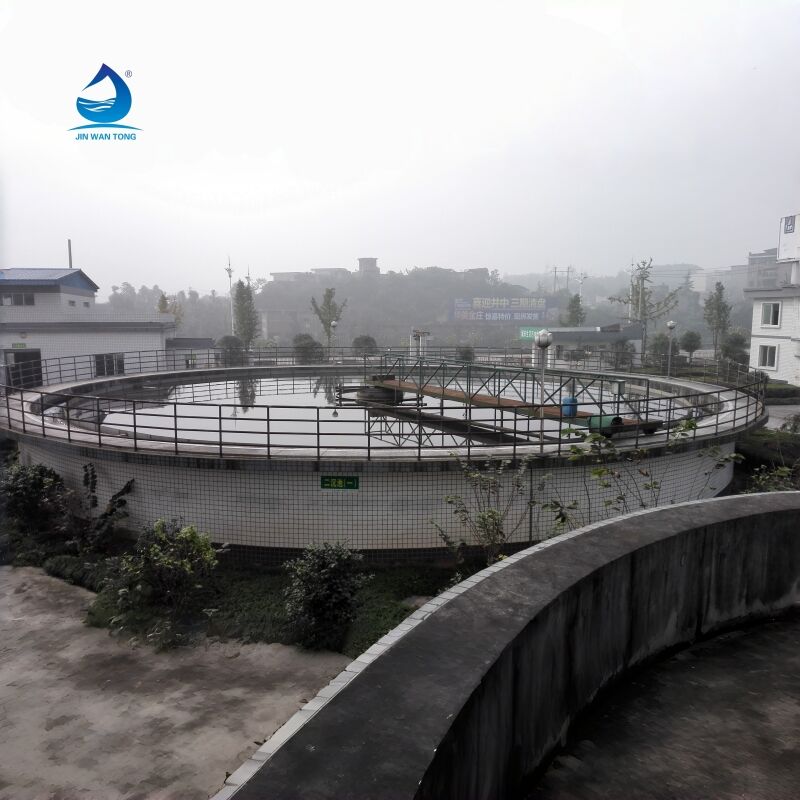

Center drive sludge scraper is applied for small and medium sized clarifier with central inlet,surrounding outlet and central sludge discharge.It is mainly used for sludge discharge of clarifiersespecially for industrial wastewater and urban sewage treatment projects.
Specifications:
Model |
Tank Diameter |
Tank Depth |
Peripheral Linear |
Driving Motor Power |
ZBG-12 |
12 |
3.5 |
1-3 |
0.55 |
ZBG-14 |
14 |
3.5 |
1-3 |
0.55 |
ZBG-16 |
16 |
3.5 |
1-3 |
055 |
ZBG-17 |
17 |
3.5 |
1-3 |
0.55 |
ZBG-18 |
18 |
3.5 |
1-3 |
0.55 |
ZBG-20 |
20 |
3.5 |
1-3 |
055 |
ZBG-25 |
25 |
3.5 |
1-3 |
0.55 |
ZBG-30 |
30 |
4 |
1-3 |
0.75 |
ZBG-35 |
35 |
4 |
1-3 |
0.75 |
ZBG-40 |
40 |
4.5 |
1-3 |
1.1 |
ZBG-50 |
50 |
4.5 |
1-3 |
1.5 |
Competitive Advantage:
1、Driving device adopts deceleration driving mechanism, compact structure, high mechanical efficiency.
2、The scraper with good continuity, high efficiency of the collection of mud; stainless steel scraper installed under the scraper rubber plate, to ensure that the scraping of mud thoroughly clean.
3、The slope of the pool bottom is 1:10, the sludge resistance is negligible when scraping sludge.
4、The main beam is made of square steel, with high structural strength and strong anticorrosion, and the main beam can also be poured with concrete directly, with smaller cost.
5、Simple operation, can realize remote control.
FAQ
1.How is the filtering effect of the equipment?
Generally speaking, it is effective in removing suspended solids in sewage. The COD and BOD indicators of the treated sewage can be greatly reduced to meet the national discharge standards or reuse standards, and the content of nutrients such as nitrogen and phosphorus in sewage can be reduced. Avoid eutrophication of water bodies.
2.What is the technical principle of the device?
Sewage treatment equipment is mainly based on sedimentation,filtration,flotation, adjusting the pH of sewage, adding coagulants to sewage, redox reactions, AO treatment processes, and MBBR/MBR treatment processes.
3.How long is the equipment warranty period?
The warranty period of our equipment is1 year. For the exported equipment, we will provide an extra set of vulnerable parts, which can be directly replaced if they are broken.
4.How to prevent equipment corrosion?
Our equipment is made of high-quality corrosion-resistant materials (such as 304 and 316 stainless steel), and anti-corrosion coatings are applied to the surface of the equipment. More importantly, we strictly follow standard procedures for painting.
