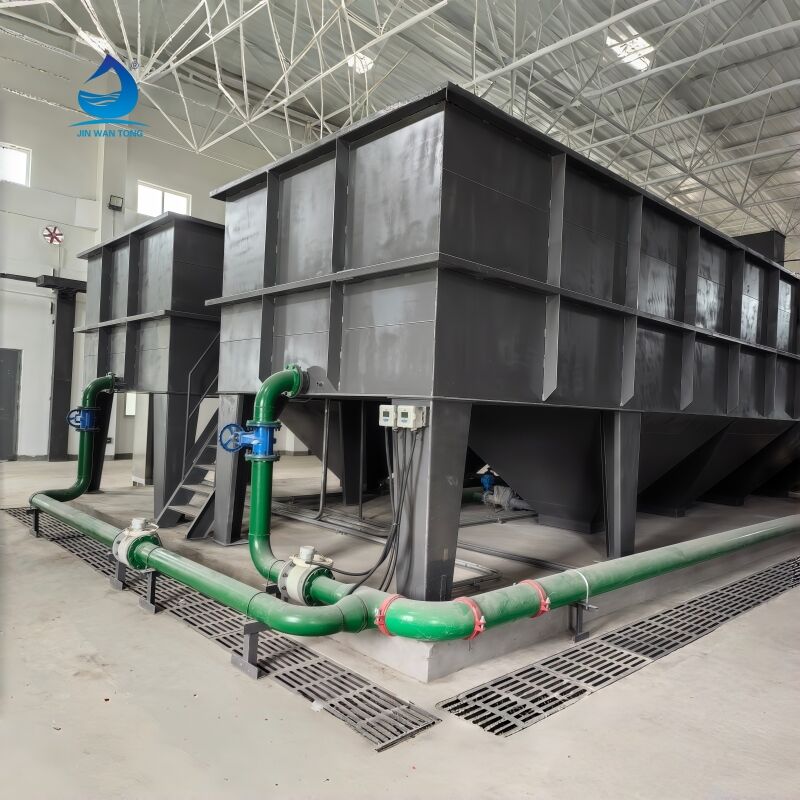

Continuous Sedimentation Tank: Stable Solid-Liquid Separation for Wastewater

A continuous sedimentation tank is a settling unit used to separate suspended solids from water while the system operates continuously. Unlike batch settling, where water is filled, settled and discharged in separate steps, a continuous tank allows wastewater to enter and clarified water to leave at the same time. This makes it suitable for wastewater treatment plants and industrial systems that require stable, long-term operation.

The working principle is gravity separation. Wastewater enters the tank through an inlet distribution structure that reduces turbulence and spreads flow evenly. When the water moves slowly through the settling zone, heavier particles, flocs or precipitates settle to the bottom. Clarified water flows out through an overflow weir or outlet channel, while the settled sludge is collected in a hopper or bottom area and discharged through a sludge pipe, pump or scraper system.

A typical continuous sedimentation process is:

Continuous sedimentation tanks can be designed in different forms, such as horizontal flow tanks, vertical flow tanks, radial flow clarifiers and inclined plate sedimentation tanks. For projects with limited installation space, a lamella clarifier can be used. Inclined plates increase the effective settling area and help improve clarification efficiency within a compact footprint.
A complete continuous settling system may include inlet baffles, flow distribution zone, reaction or flocculation section, settling chamber, inclined plates or tubes, overflow weir, sludge hopper, scraper mechanism, sludge discharge pipeline, chemical dosing system, access platform, control cabinet, valves and supporting pipelines. In industrial wastewater projects, material selection is important because wastewater may contain chemicals, salts, oil, suspended solids or corrosive substances.

For B2B buyers, proper selection should not be based only on tank volume. Key design parameters include influent flow rate, peak flow, suspended solids concentration, particle settling velocity, hydraulic retention time, surface loading rate, sludge production, chemical dosing requirement, effluent clarity target, available space and maintenance access. If the inlet flow is not evenly distributed or the surface loading is too high, solids may escape with the clarified water and reduce treatment performance.

Continuous sedimentation tanks are widely used after coagulation and flocculation, chemical precipitation, biological treatment, oil-water separation or DAF pretreatment. They are suitable for removing settleable solids and flocs, but they cannot remove dissolved pollutants, stable emulsified oil or very fine colloids without additional processes. In such cases, chemical dosing, dissolved air flotation, filtration, biological treatment or membrane systems may be required.

The sludge collected from the bottom of the tank is usually sent to a sludge storage tank or sludge dewatering machine for volume reduction. The clarified water may go to filtration, biological treatment, membrane treatment, disinfection or discharge, depending on the process design.

Qingdao Jinwantong provides customized continuous sedimentation tanks and related wastewater treatment equipment. Buyers can send flow rate, water quality, suspended solids level, treatment target, site layout and project location for technical selection and quotation.
