Sedimentation Tank in Wastewater Treatment: Optimize Clarification & Sludge Handling

A sedimentation tank in wastewater treatment is a key solid-liquid separation unit used to clarify wastewater by gravity settling. In simple terms, it gives suspended particles enough time and space to sink to the bottom, while cleaner water flows out from the top. It is widely used in municipal sewage treatment plants, industrial wastewater systems and packaged treatment projects.

The working principle is based on density difference. When wastewater enters the tank, the flow velocity is reduced by inlet baffles or distribution structures. Heavier suspended solids, biological sludge or chemical flocs settle under gravity. Clarified water exits through an overflow weir or outlet channel, and the settled sludge is collected in a hopper or bottom zone for discharge.

A typical process is:

In wastewater treatment, sedimentation tanks can have different functions depending on their process position. A primary sedimentation tank removes settleable solids before biological treatment, reducing organic and solids load. A secondary clarifier separates activated sludge from treated water after biological treatment. A chemical sedimentation tank is usually installed after dosing and flocculation to remove precipitated phosphorus, heavy metal hydroxides or coagulated suspended solids.

Common equipment types include horizontal flow sedimentation tanks, vertical flow sedimentation tanks, radial flow clarifiers and lamella clarifiers. A lamella clarifier uses inclined plates or tubes to increase the effective settling area. This allows better clarification in a smaller footprint, which is useful for industrial plants, upgrading projects and compact wastewater treatment systems.

A complete sedimentation system may include inlet distribution device, flocculation zone, settling chamber, inclined plates, overflow weir, sludge hopper, sludge scraper, sludge discharge pipeline, dosing system, access platform, valves, pipelines and optional control cabinet. For industrial wastewater, material selection is important because the wastewater may contain oil, salts, chemicals, corrosive substances or abrasive particles.

For B2B buyers, selecting a sedimentation tank should not be based only on tank volume. Important parameters include influent flow rate, peak flow, suspended solids concentration, particle settling velocity, hydraulic retention time, surface loading rate, sludge volume, chemical dosing requirement, required effluent quality, available installation space and maintenance access. Poor inlet distribution, excessive hydraulic loading or delayed sludge discharge can lead to solids carryover and unstable effluent.

Sedimentation is effective for settleable solids and formed flocs, but it has limits. It cannot remove dissolved pollutants, stable emulsified oil or very fine colloids without additional treatment. In such cases, coagulation-flocculation, DAF dissolved air flotation, filtration, biological treatment, membrane systems or advanced treatment may be needed.

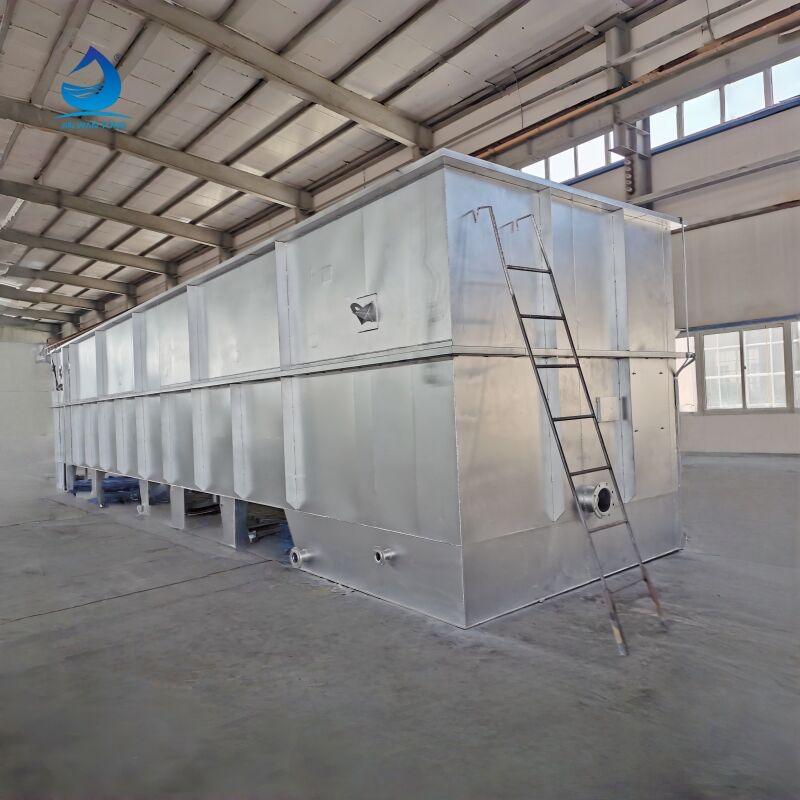

Qingdao Jinwantong provides customized sedimentation tanks, lamella clarifiers and supporting wastewater treatment equipment. Buyers can send flow rate, wastewater quality, suspended solids level, treatment target, site layout and project location for technical selection and quotation.
