Effluent Sewage Treatment Plant: Compliant Discharge Solutions [2024]

An effluent sewage treatment plant is a wastewater treatment system designed to convert raw sewage or mixed wastewater into treated effluent that can be discharged or reused according to project requirements. In B2B procurement, the key question is not only whether the plant can “treat sewage,” but whether it can consistently meet the required effluent quality under real operating conditions.
A typical process may include:

Pretreatment is the first step. Screens remove large solids such as plastics, fibers, food residues and debris. Equalization tanks balance flow and pollutant concentration, which is important for hotels, communities, schools, service areas and industrial parks where wastewater flow changes during the day. If wastewater contains grease, oil or high suspended solids, grease traps, oil-water separators, DAF dissolved air flotation or chemical dosing may be required.
Biological treatment is the core of most sewage effluent treatment systems. MBR technology combines activated sludge with membrane separation, producing clear effluent and reducing the need for a large secondary clarifier. MBBR technology uses suspended biofilm carriers to increase biomass concentration and improve resistance to shock loading. SBR technology treats wastewater through timed cycles of filling, aeration, settling and decanting, making it suitable for projects with variable flow.

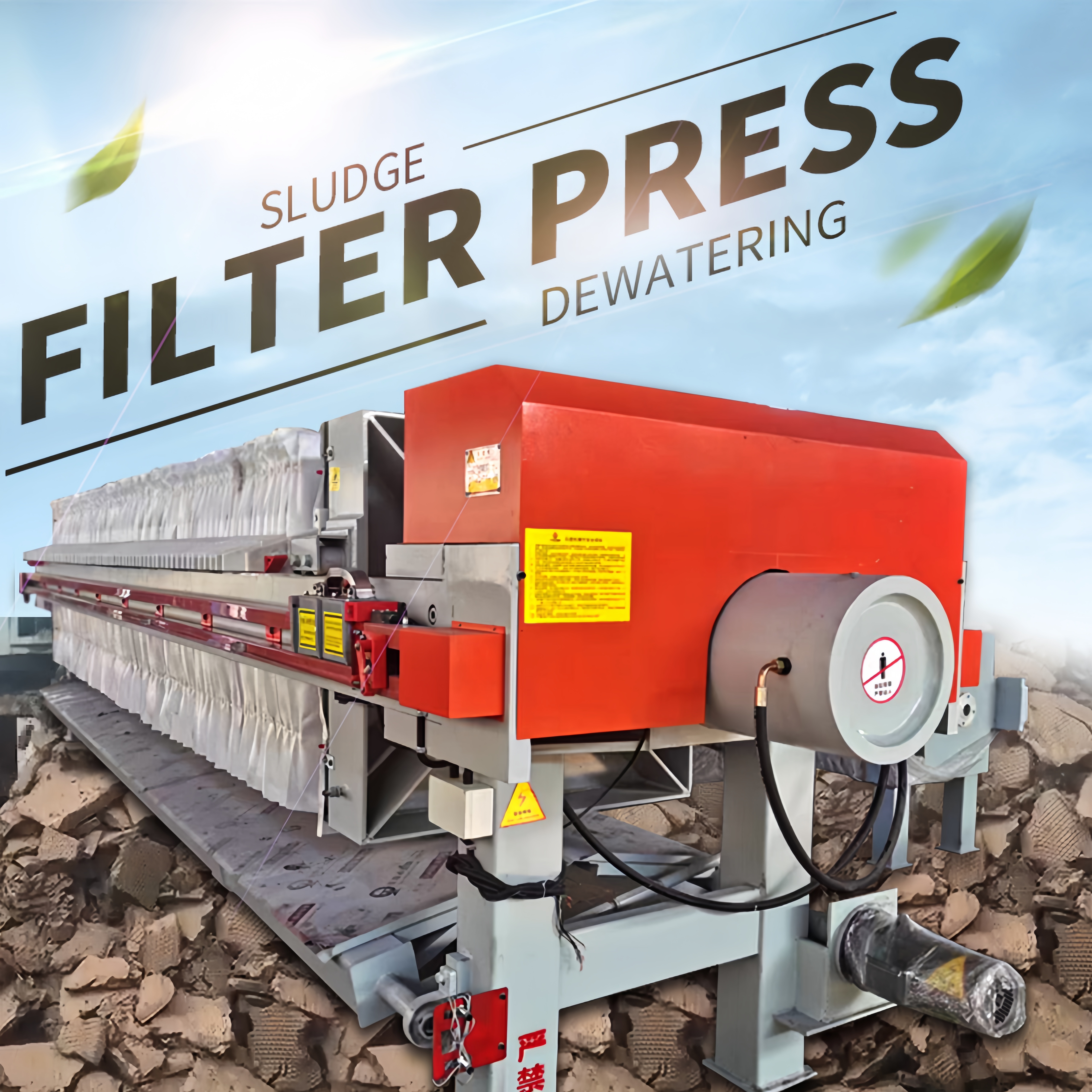

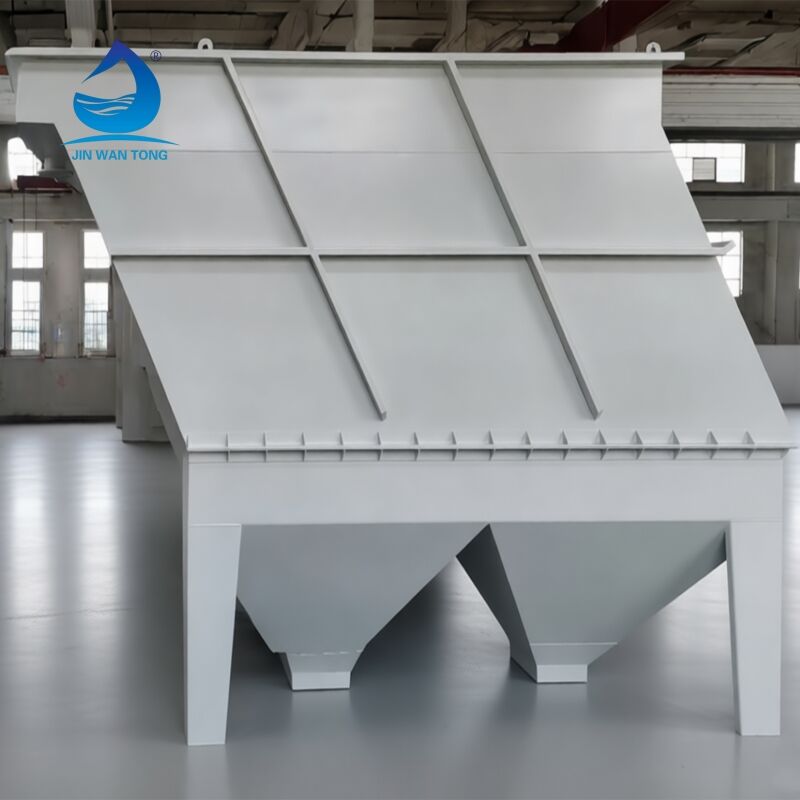

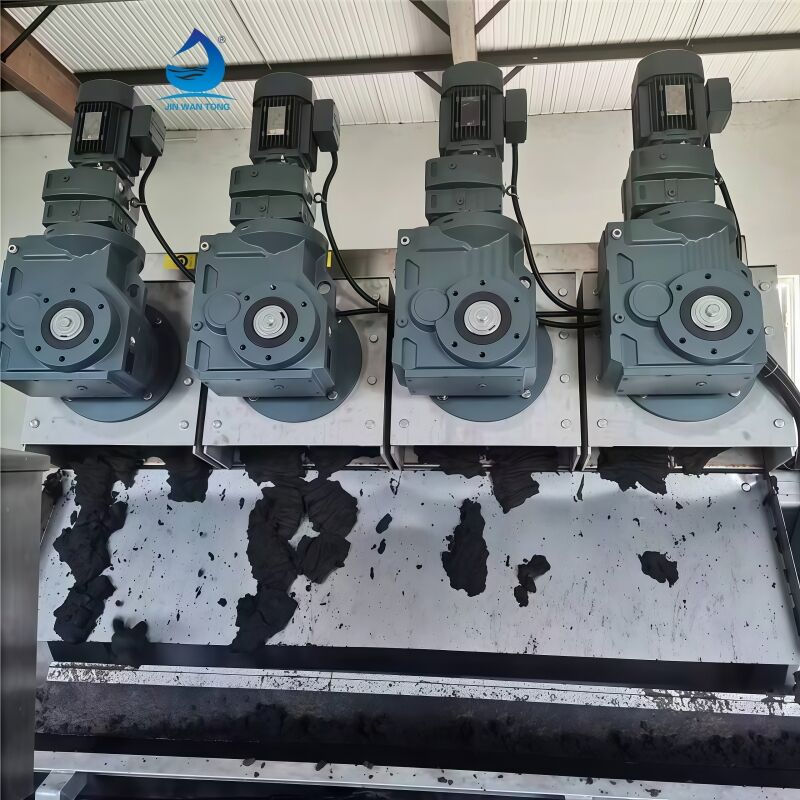

After biological treatment, sedimentation, lamella clarification, sand filtration, activated carbon filtration or disinfection may be added according to the discharge target. If the treated effluent is intended for irrigation, flushing, landscaping or other non-potable reuse, additional polishing may be required. Sludge produced during treatment should be collected, discharged and, when necessary, dewatered to reduce disposal volume.
Correct selection depends on more than daily flow. Buyers should provide peak flow, sewage source, COD, BOD, TSS, ammonia nitrogen, total nitrogen, phosphorus, oil content, pH, temperature, salinity, discharge standard, site layout, power supply, installation method and automation needs. These factors determine tank volume, aeration capacity, membrane area, carrier filling ratio, dosing configuration, sludge handling and total equipment cost.
It is also important to understand the limitations. Biological sewage treatment is effective for biodegradable wastewater, but toxic chemicals, heavy metals, high salinity, strong acid or alkali, excessive oil and poor biodegradability may affect treatment performance. Industrial effluent may require pretreatment or a combined physical-chemical and biological process.
Qingdao Jinwantong provides customized sewage and wastewater treatment equipment for commercial, municipal, industrial and decentralized projects. Send your water quality data, flow rate, discharge target and site conditions to receive technical selection and quotation support.
